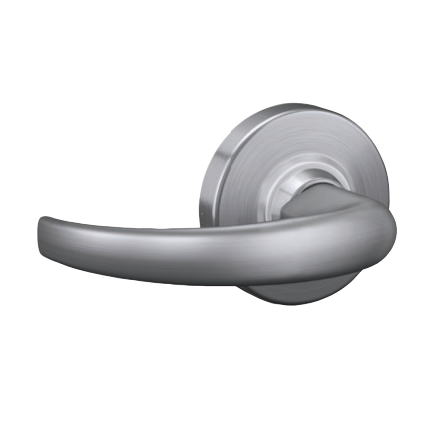

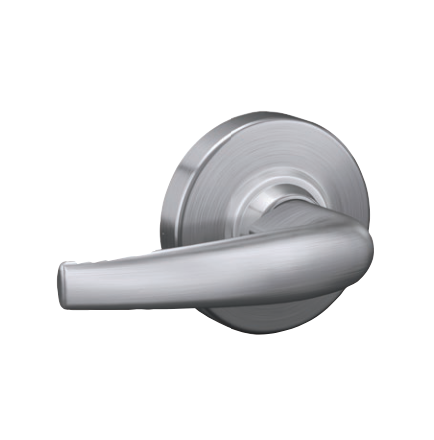

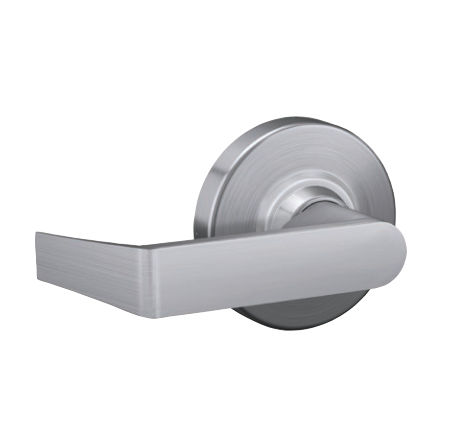

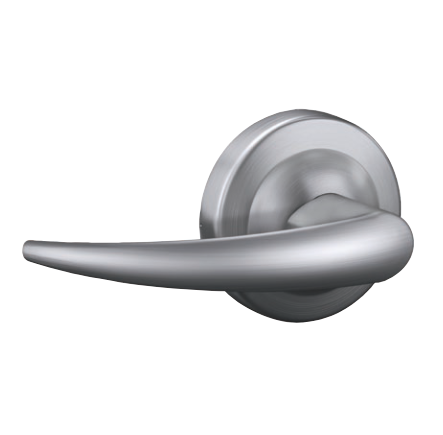

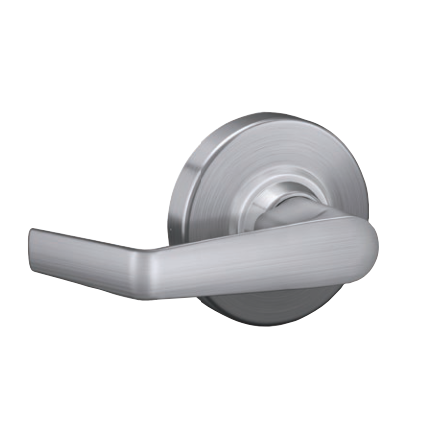

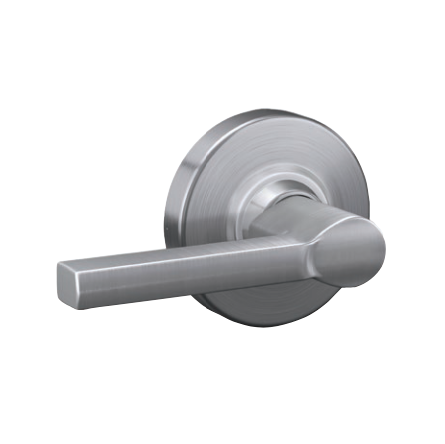

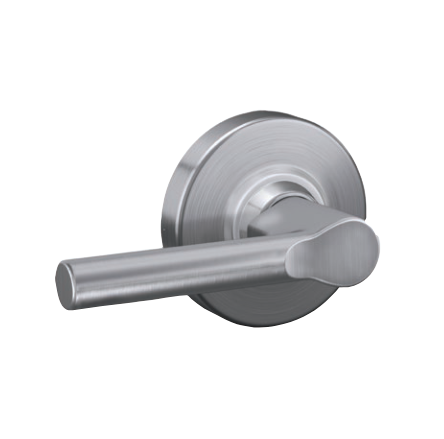

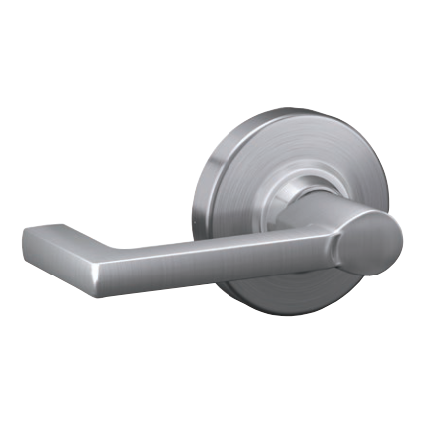

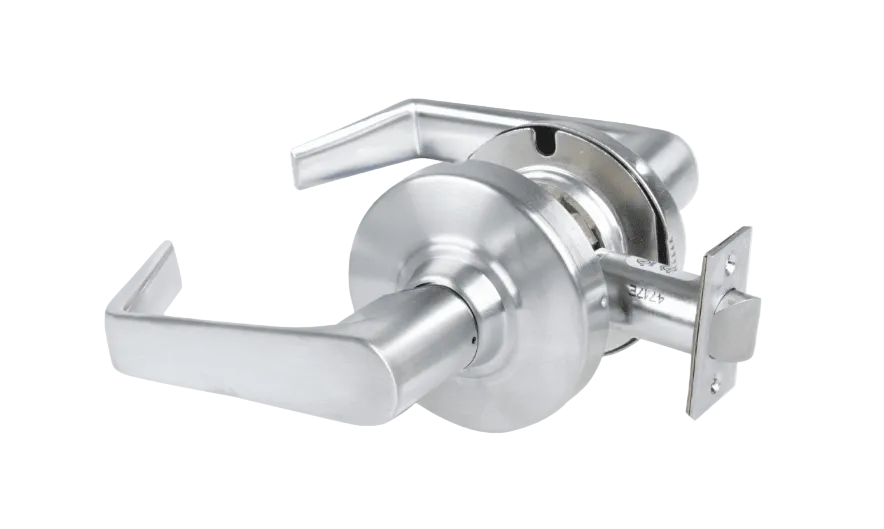

Schlage ALX10 Grade 2 Passage Cylindrical Lock, Non-Keyed, Non-Handed

Schlage ALX10 Grade 2 Commercial Passage Lever Lock

The Schlage ALX10 is a heavy-duty Grade 2 passage lever lock built for high-traffic commercial door:s where free passage is required at all times — ideal for corridors, stairwells, and common areas. Non-keyed and non-handed, it installs on any door without modification. The ALX Series features a single patent-pending chassis that supports most functions and all cylinder applications.

Function:

• Levers on both sides; spring latch
• Latch retracted by lever from either side at all times
• Inside lever always free for immediate egress
• Request to Exit (RX) available — kit sold separately

Certifications & Compliance:

• ANSI/BHMA: Certified A156.2-2011, Series 4000, Grade 2
• UL Listed: 3-hour fire door rating
• ADA Compliant: All lever designs meet Americans with Disabilities Act requirements

Specifications:

• Handing: Non-handed
• Door Thickness: 1-3/8" to 1-3/4"
• Backset: 2-3/4" standard
• Faceplate: 1-1/8" x 2-1/4" square corner
• Latch: 7/8" housing diameter with 1" diameter sleeve, 1/2" throw
• Strike: 1-1/4" x 4-7/8" ANSI, square corner, no dust box
