Schlage ALX172 Double Dummy Lever Trim | Grade 2 Commercial Non-Keyed

Schlage ALX172 Grade 2 Commercial Double Dummy Lever Trim

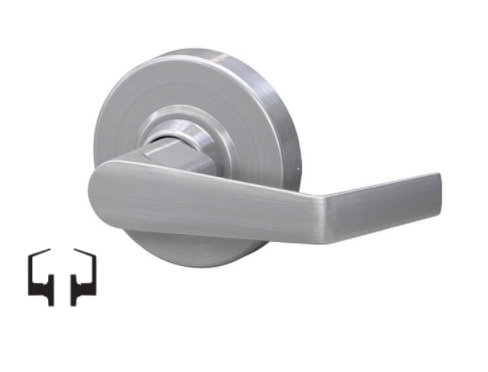

The Schlage ALX172 is a Grade 2 double dummy lever trim with rigid levers on both sides and no latch or locking function. Designed for use as a door pull or matching inactive trim on paired doors, it delivers a consistent look across a facility when paired with other ALX Series hardware. Non-handed and non-keyed, it installs on any door without modification.

Function:

No key; rigid plain lever both sides; no latchbolt
Use as a door pull or matching inactive trim on paired/double doors

Certifications & Compliance:

ANSI/BHMA: Certified A156.2-2011, Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability
UL/cUL Listed: A label single fire door (4'×8', 4'×10') 3-hour; pair doors (8'×8') 3-hour; (8'×10') 90-minute
ADA Compliant: All lever designs meet Americans with Disabilities Act requirements
ICC: Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities

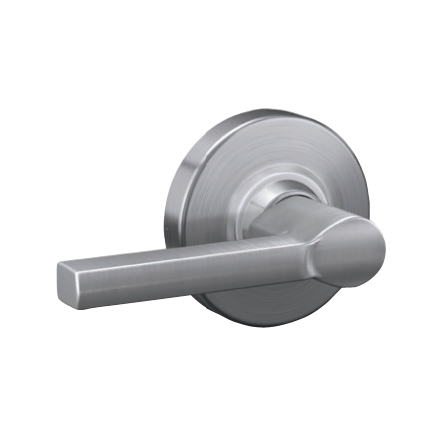

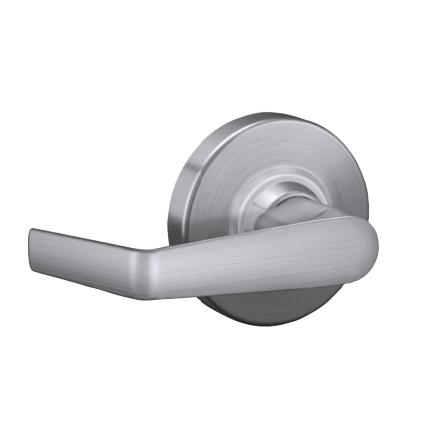

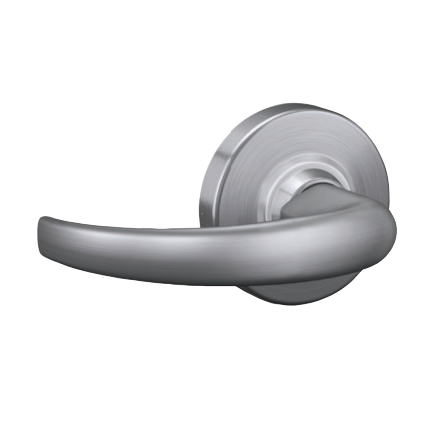

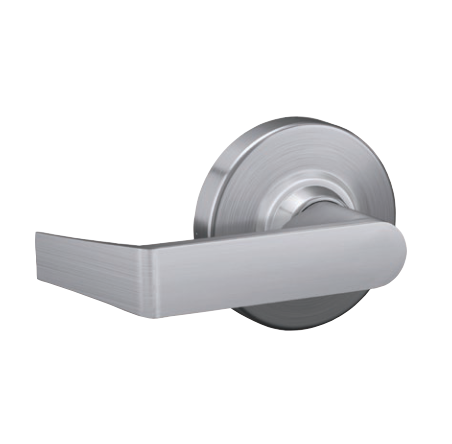

CA Fire Code: Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular levers comply (return to door ≤ 1/2")
FL Building Code: Meets ASTM E330, E1886, E1996 and Miami-Dade (TAS 201, 202, 203) hurricane requirements
Federal: Meets FF-H-106C Series 161

More Information

Specifications	Material: Steel, zinc dichromated for corrosion resistance Door thickness: Standard: 1 3⁄8" to 1 3⁄4" Handing: Non-handed Levers: Pressure cast zinc, plated to match product finish specification Roses: Wrought brass, bronze or zinc plated to match finish specification Faceplate: Standard: 1 1⁄8" x 2 1⁄4" square corners
UPC	722208644380
