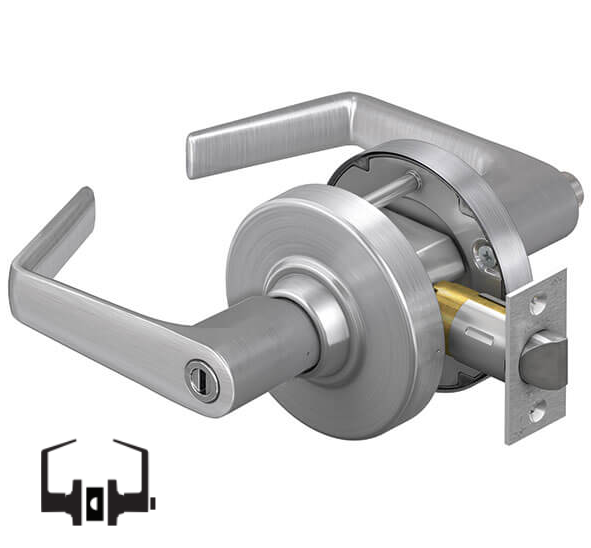

Schlage ALX40 Grade 2 Commercial Privacy Lever Lock

Schlage ALX40 Grade 2 Commercial Privacy Lever Lock

Secure your commercial bathrooms and bedrooms with the Schlage ALX Series — engineered for durability, accessibility, and code compliance. The ALX40 features a patent-pending single chassis design that supports most functions and all cylinder applications, giving you maximum flexibility without sacrificing strength.

Function:

• Push-button locking from inside — no key required
• Emergency coin-turn access from outside for safety compliance
• Turn inside lever or close door to automatically release the button — prevents accidental lock-outs
• Inside lever always free for immediate egress
• Spring latch for smooth, reliable operation

Certifications & Compliance:

• ANSI/BHMA A156.2-2011 Series 4000, Grade 2 — exceeds standards for lever and spindle strength
• ADA Compliant — all lever designs meet Americans with Disabilities Act requirements
• ICC A117.1 — complies with Accessible and Usable Buildings and Facilities standard
• UL/cUL Listed — A label single fire door up to 3-hour rating; pair doors up to 90-minute
• UL 437 — optional high-security cylinders available
• Florida Building Code — meets ASTM E330, E1886, E1996 and Miami-Dade hurricane requirements
• Federal FF-H-106C Series 161 compliant

Specifications:

• Material: Steel, zinc dichromated for corrosion resistance
• Door Thickness: 1 3/8" to 1 3/4" (standard)
• Handing: Non-handed (fits any door)
• Levers: Pressure cast zinc, plated to match finish
• Roses: Wrought brass, bronze, or zinc plated to match finish
• Backset: 2 3/4" standard; 2 3/8" available
• Faceplate: 1 1/8" x 2 1/4" square corners
• Latch: 7/8" bolt diameter, 1/2" throw, stainless steel
• Strike: ANSI Curved Lip 1 1/4" x 4 7/8" x 1 3/16"
