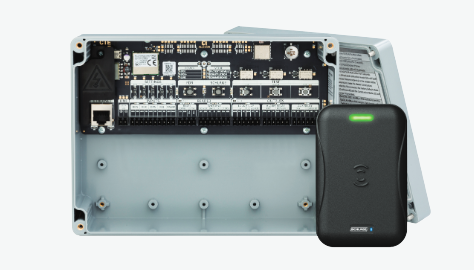

Schlage Electronics CTE-MTB11 CTE ENGAGE Single Door Controller with Mobile Enabled Multi-Tech Mullion Reader Kit, Black

Schlage Electronics CTE-MTB11 CTE ENGAGE Single Door Controller with Mobile Enabled Multi-Tech Mullion Reader Kit, Black

SKU: CTE-MTB11-485-B

Brand : Schlage

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$1,139.45
$1,139.45
Subtotal: $1,139.45
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

Schlage Electronics CTE-MTB11 CTE ENGAGE Single Door Controller with Mobile Enabled Multi-Tech Mullion Reader Kit, Black

  • Enables around the door solution with ENGAGE functionality
  • Built-in Bluetooth® and Wi-Fi®
  • Complete with Schlage MTB11 or MTB15 reader (required reader interface RS-485)
  • No-Tour capable
  • Flexible connectivity options: manage with ENGAGE web and mobile apps or with one of our PACS providers
  • Inputs: door position (DPS), request to exit (REX), request to enter (REN), remote release (REL)
  • Outputs: lock relay, alarm relay, auxiliary (Aux) relay
  • Input Power: 12 or 24 VDC or Power over Ethernet (PoE/PoE+)
  • Provides DC output power and dry control contacts
Read more
More Information
Specifications
  • Users: Up to 5,000
  • Audits: Up to 2,000
  • Schedules: Up to 16
  • Holidays: Up to 32
  • Time zones: Up to 16
  • Communication standards:
    • Bluetooth® Low Energy (version 4.2)
    • 2.4 GHz Wi-Fi® (IEEE 802.11b/g/n)
    • WPA2, WPA, WEP, 802.1x (PEAP)
    • Transport Layer Security (TLS) version 1.2
    • Advanced Encryption Standard (AES), 256-bit
  • Gateway communication range:
    • Up to 30' in typical building environments. A detailed site survey is recommended.
    • Reference ENGAGE™ Gateway data sheet for additional details.
  • Connectivity options:
    • Mobile (send updates at door)
    • Wi-Fi access point (automatic daily updates)
    • ENGAGE Gateway, IP to host (Networked wireless reader interface)
    • No-Tour 1
  • Power inputs:
    • 12 or 24 VDC at 3 amps input for powered outputs to get Max 2 amp output on relays,
      0.5 amp minimum input when using dry contacts.
    • PoE/PoE+ (IEEE 802.3af/at)
  • Powered outputs: Locking mechanism, alarm, aux:
    • 12 VDC input: 2A @ 12 VDC max (combined output across powered outputs)
    • 24 VDC input: 2A @ 24 VDC max (combined output across powered outputs)
    • PoE input: 0.5A @ 12 VDC max (combined output across powered outputs)
    • PoE+ input: 1.5A @ 12 VDC max (combined output across powered outputs)
  • Dry outputs: locking mechanism, alarm, aux: Locking mechanism: 2A @ 30 VDC max
  • Reader interface:
    • 0.3A @ 12 VDC Max (up to 500 ft.)
    • 12 or 24 VDC input: 12V @ 0.3A max output
      POE or POE+ input: 12V @ 0.3A max output
    • Aux: 2A @ 30 VDC max
    • Alarm: 2A @ 30 VDC max
    • Reader (Schlage MTB11 or MTB15) (Required to utilize -485 interface)
  • Signal inputs:
    • Request-to-Enter (REN)
    • Request-to-Exit (REX)
    • Remote Release (REL) — wired
    • Door Position Switch (DPS)
    • Tamper (TAMP)
  • Operating temperature (indoor): -31°F (-35°C) to 151°F (66°C)
  • Operating humidity: 0 - 100% Non-condensing
  • Certifications: UL 294 Indoor, FCC Part 15, NEMA Enclosure Indoor (Type 1, 4, and 4X), ULC S319 Indoor, RoHS
  • Dimensions: 2.96" x 5.89" x 7.86"
