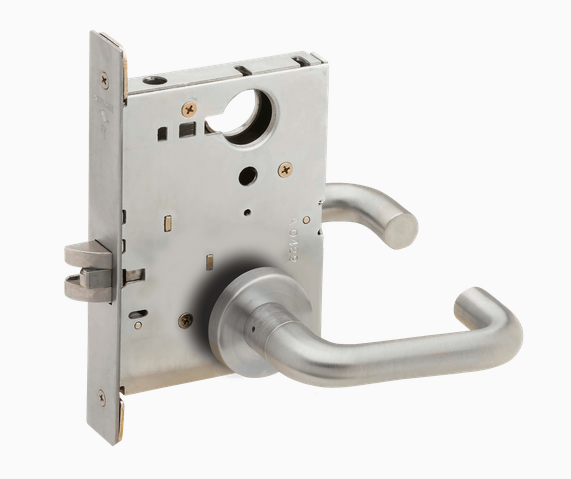

Schlage L9010 Grade 1 Mortise Passage Latch, A Rose, Satin Chrome Finish, Field Reversible

SKU: L9010-03A-626

Brand : Schlage

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$631.30
$631.30
Schlage Lever/Knob Design: 03
Subtotal: $631.30
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • Passage latch
  • Inside lever always free for immediate egress
  • Latchbolt retracted by lever/knob from either side at all times

Secured and trusted checkout with

Schlage L9010 Grade 1 Mortise Passage Latch, A Rose, Satin Chrome Finish, Field Reversible

The Schlage L Series mechanical lock is the industry standard of mortise locks. It has earned its unparalleled reputation over its long history through consistently delivering reliable, durable and flexible performance.

The L Series not only exceeds ANSI/BHMA Security Grade 1 AND Operational Grade 1 standards, it also serves as the foundation for the Schlage L wired electrified, LE wireless electronic and multi-point mortise lock portfolios.

Function:

  • Latchbolt retracted by knob/lever from either side at all times.
  • Inside knob/lever is always free for immediate egress.

Features:

  • Exceeds ANSI/BHMA Grade 1 operational and security standards
  • Expansive list of configurations and options
  • 50 mechanical functions meet the requirements of most applications
  • Universal lock case that supports 10 different functions
  • 14 finishes paired with 33 levers, two knobs, five roses and three escutcheon designs to enhance any building style
  • Levers constructed of solid brass or solid stainless steel for a strong-yet-comfortable feel
  • Supports standard, SFIC and FSIC cylinder formats
  • Multiple key systems available
Specifications
  • Handing: Field Reversible
  • Door Thickness: 1-3/4"
  • Strike Height: 4-7/8"
  • Screws: Combination
  • Latch Backset Dim: 2-3/4"
  • Latch Type: Spring Latch (Unguarded)
  • Lock Face Size: 8" x 1-1/4"
  • Bolt Projection: 3/4" Latc
  • Strike Width: 1-3/16"
  • Dust Box: Plastic
  • Rose Design: A Rose
  • Rose Dimensions: 2-1/8"
  • Latch Bore Diameter: 2-3/4"
UPC 722208643345
