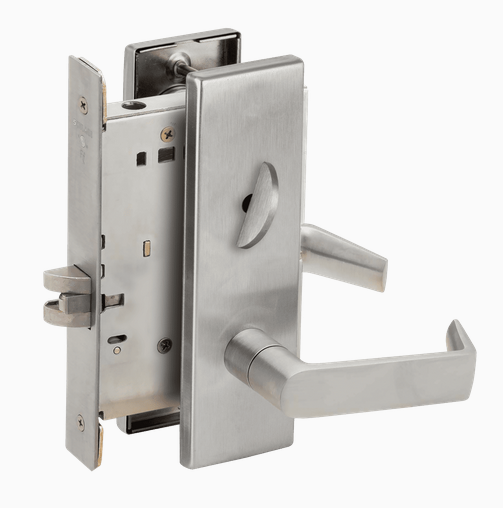

Schlage L9040 06N 626 Grade 1 Bed Bathroom Privacy Mortise Lock, 06 Lever, N Escutcheon, Satin Chrome Finish, Field Reversible

Schlage L9040 06N 626 Grade 1 Bed Bathroom Privacy Mortise Lock, 06 Lever, N Escutcheon, Satin Chrome Finish, Field Reversible

SKU: L9040 06N 626

Brand :

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$795.00
$795.00
Subtotal: $795.00
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

Schlage L9040 06N 626  Grade 1 Bed Bathroom Privacy Mortise Lock, 06 Lever, N Escutcheon, Satin Chrome Finish, Field Reversible

Function:

  • Emergency thumbturn access outside; thumbturn inside; latchbolt only
  • Latchbolt retracted by lever (or knob) from either side
  • Outside lever is made inoperative by rotating inside thumbturn; Vandlgard® option allows outside lever to rotate freely down while locked
  • To unlock from outside, remove access hole cover, insert emergency thumbturn (furnished) and rotate
  • Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
  • Inside lever always free for immediate egress
Read more
More Information
Specifications
  • Handing: Field Reversible
  • Door Thickness: 1-3/4"
  • Std. Strike Height: 4-7/8"
  • Screws: Combination
  • Lever/Knob Design Family: Straight Return Lever
  • Std. Latch Backset Dim: 2-3/4"
  • Std. Strike Type: ANSI Strike
  • Std. Latch Type: Spring Latch (Unguarded)
  • Lock Face Size: 8" x 1-1/4"
  • Bolt Projection: 3/4" Latch
  • Std. Strike Number: 10-072 1316 626
  • Std. Strike Width: 1-3/16"
  • Dust Box: Plastic
  • Lever/Knob Design: 06 Lever
  • Latch Bore Diameter: 2-3/4"
  • Rose/Escutcheon Design: N Escutcheon
  • Rose/Escutcheon Dimensions: 8" x 2-9/16" x 7/16"
  • Function: 9040-Bed Bathroom Privacy
