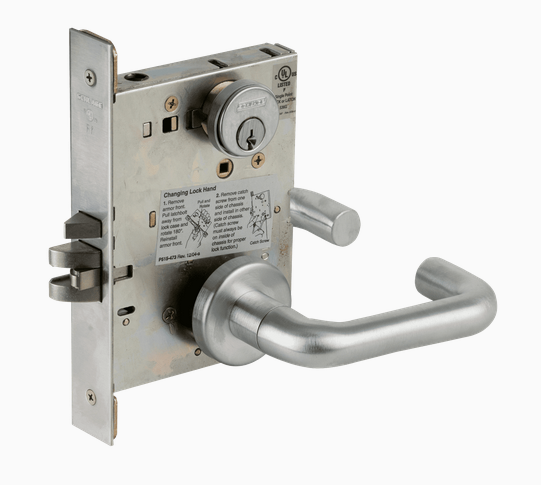

Schlage L9092EUP RX Grade 1 Fail Secure Electric Mortise Lock, Conventional Cylinder, 03 Lever, A Rose

SKU: L9092EUP 03A 626 RX-C Keyway-KA

Brand : Schlage

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$1,303.65
$1,303.65
Subtotal: $1,303.65
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Schlage L9092EUP RX Grade 1 Fail Secure Electric Mortise Lock, Conventional Cylinder, 03 Lever, A Rose

Electrically unlocking outside lever, outside cylinder

Function:

  • Key cylinder outside with lever (or knob); lever only-inside; latchbolt and deadlocking auxiliary latch
  • Powered state: outside lever continuously locked (EL mode) or unlocked (EU mode); Vandlgard® option allows outside lever to rotate freely down while locked
  • Key outside retracts latchbolt but cannot change the normal locked or unlocked state of outside lever
  • When power is removed (or power fails): in EL mode either lever will retract latchbolt; in EU mode outside lever is locked
  • Inside lever always free for immediate egress
Specifications
  • Handing: Field Reversible
  • Door Thickness: 1-3/4"
  • Switch Type: Request to Exit
  • Std. Strike Type: ASA
  • Std. Strike Height: 4-7/8"
  • Std. Strike Width: 1-1/4"
  • Screws: Combination
  • Power: Hard Wired
  • Cylinder Type: Conventional Cylinder
  • # Pins: 6
  • Std. Keyway: C
  • Keying: Keyed Different
  • Key(s): Included
  • # of Keys: 2
  • Operating Voltage: 12VDC/24VDC
  • Lock Face Size: 8" x 1-1/4"
  • Dust Box: Plastic
  • Rose/Escutcheon Design: A Rose
  • Lever/Knob Design: 03 Lever
  • Std. Strike Number: 10-072
  • Bolt Projection: 3/4"
  • AMP Draw: 400mA
  • Function: 9092EU-Fail Secure
