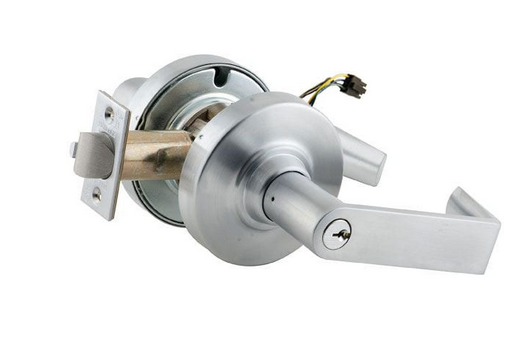

Schlage ND80PDEU Grade 1 Electrified Cylindrical Storeroom Lock, 12-24 VDC, Fail Secure, Satin Chrome

Applications:

• High traffic areas, where line power ensures continuous operation
• New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building

Key Features:

All mechanical features plus:

• Auto-detecting 12-24VDC input
• Selectable EL/EU operation
• Low 0.23 amp max current draw that allows multiple locks on a single power supply
• Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
• Modular Request to Exit (RX) that can be added at any time
• Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
• Six electrified functions for application flexibility

Function:

• Lever with key cylinder outside; lever inside; deadlatch
• Powered state: outside lever continuously unlocked (when in EU mode)
• When power is removed (via switch or power failure), in EU mode outside lever is locked
• Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• To order configured with Request to Exit (RX), specify RX under special options.
