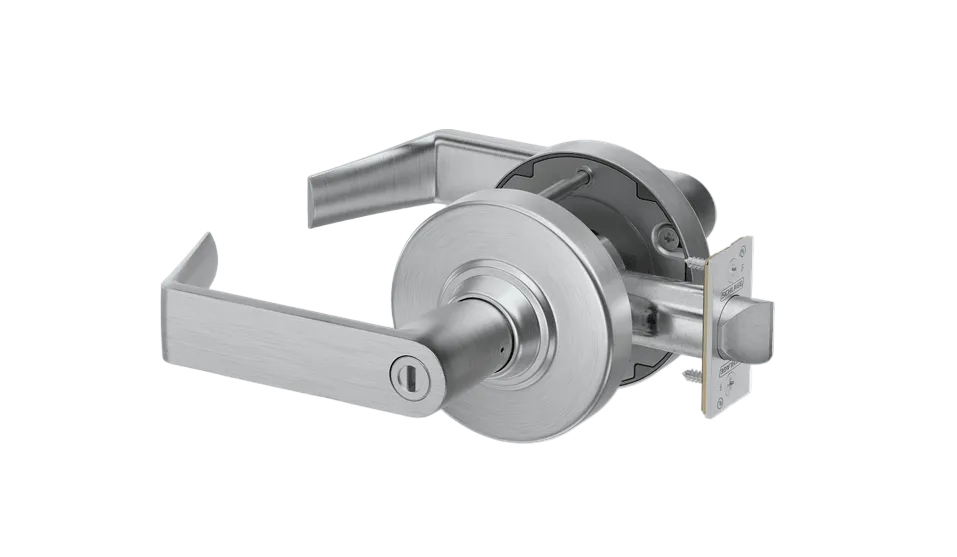

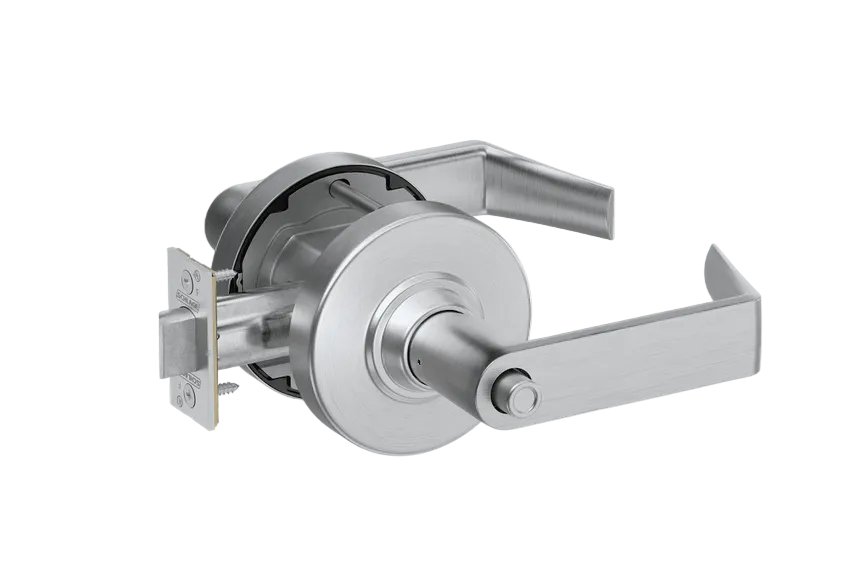

Schlage PC40 Grade 1 Bath/Bedroom Privacy Cylindrical Lock, Non-Keyed

Schlage PC40 Grade 1 Bath/Bedroom Privacy Cylindrical Lock, Non-Keyed

The Schlage Performance Series™ PC40 delivers Grade 1 privacy for bathrooms, bedrooms, and similar spaces in commercial real estate, multifamily, and hospitality applications.

Non-keyed and built on the trusted PC Series platform, the PC40 installs fast with the standard ANSI 161 door prep and a no-adjustment chassis that fits the full door thickness range.

Function:

• Push button on inside lever locks outside lever
• Rotating inside lever retracts latch and releases button — closing door also unlocks, preventing lock-out
• Emergency unlock: insert small flat screwdriver or emergency key (part #35-270, sold separately) into outside lever slot to release button
• Inside lever always free for immediate egress
• Request to Exit (RX) available — kit sold separately

Certifications & Ratings:

• ANSI/BHMA A156.2-2022, Series 4000 Grade 1
• UL Listed for 3-hour fire door applications

Technical Specifications:

• Cylinder Type: Non-keyed
• Latch Type: Springlatch
• Backset: 2-3/4" (70mm)
• Door Thickness: 1-3/8" to 1-3/4"
• Latch Bolt: 1-1/8" x 2-1/4", square corner faceplate, 1/2" throw
• Strike: ANSI curved lip, 1-1/4" x 4-7/8" x 1-3/16"
• Base Material: Zinc and Steel
• Rose Diameter: 3-11/25"
• Handing: Non-handed
