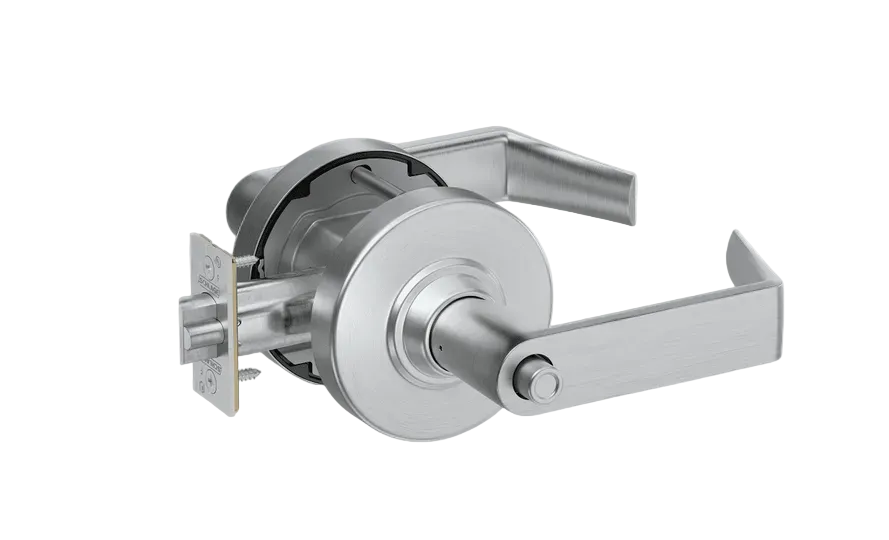

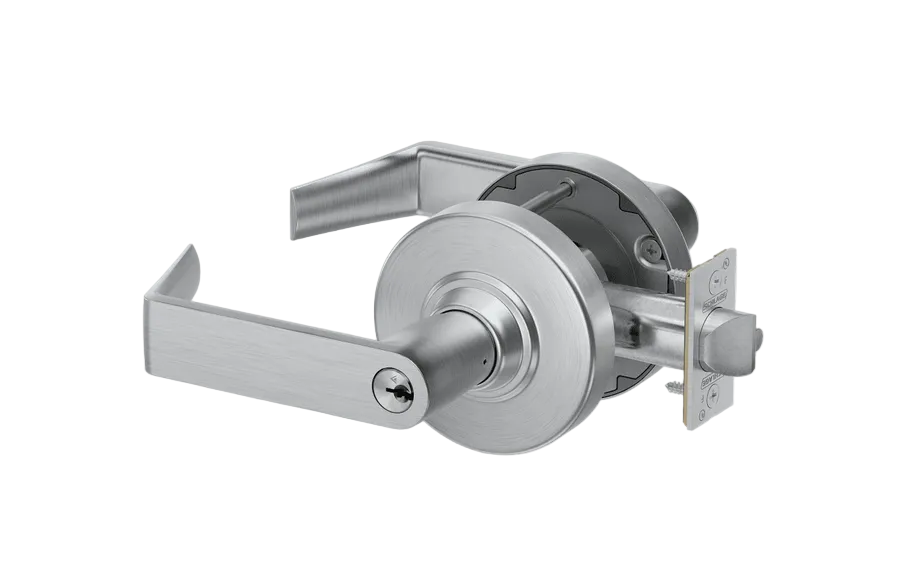

Schlage PC50P Grade 1 Entrance/Office Cylindrical Lock, Conventional Cylinder

Schlage PC50P Grade 1 Entrance/Office Cylindrical Lock, Conventional Cylinder

The Schlage Performance Series™ PC50P is the go-to entrance and office lock for commercial real estate, retail, multifamily, and hospitality applications.

Built on the trusted PC Series platform, the PC50P installs fast with the standard ANSI 161 door prep, pre-assembled install-assist design, and a no-adjustment chassis that accommodates the full door thickness range.

Function:

• Push button on inside lever locks outside lever — no key required
• Key from outside or rotating inside lever releases button and unlocks outside lever
• In unlocked state, latch retracted by either lever
• Inside lever always free for immediate egress
• Deadlatch included

Certifications & Ratings:

• ANSI/BHMA A156.2-2022, Series 4000 Grade 1
• UL Listed for 3-hour fire door applications

Technical Specifications:

• Backset: 2-3/4" (70mm)
• Door Thickness: 1-3/8" to 1-3/4"
• Latch Bolt: 1-1/8" x 2-1/4", square corner faceplate, 1/2" throw
• Strike: ANSI curved lip, 1-1/4" x 4-7/8" x 1-3/16"
• Cylinder: 6-pin solid brass, S123 keyway, keyed different (KD)
• Keys Included: Two nickel silver cut keys per lock
• Base Material: Zinc and Steel
• Rose Diameter: 3-11/25"
• Handing: Non-handed
