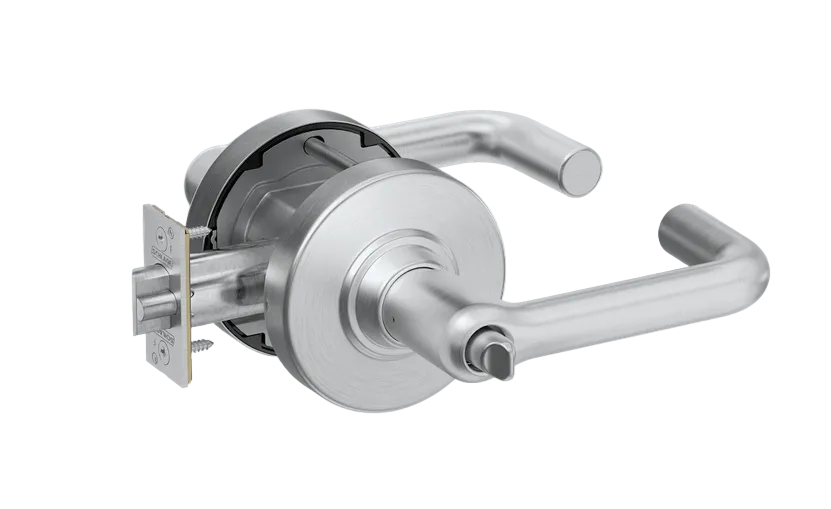

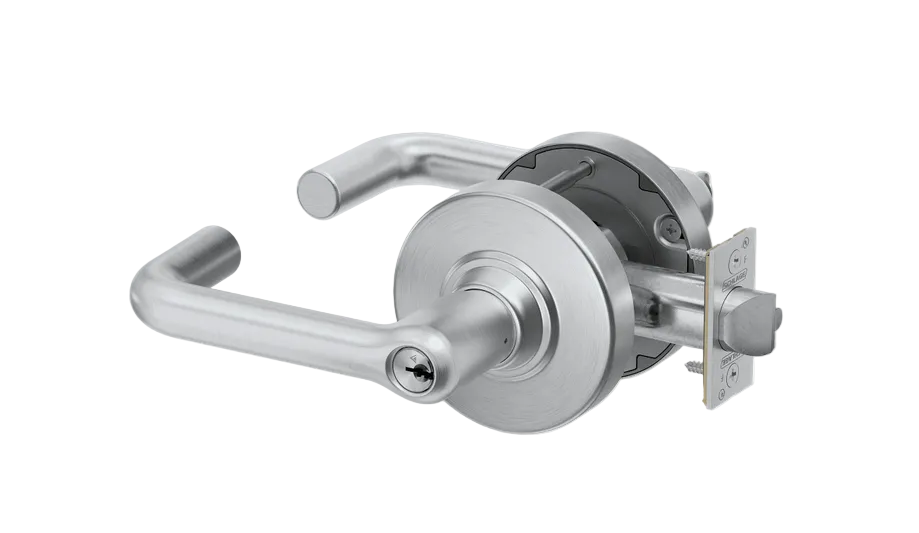

Schlage PC53P Grade 1 Entrance Cylindrical Lock, Conventional Cylinder

Schlage PC53P Grade 1 Entrance Cylindrical Lock, Conventional Cylinder

The Schlage Performance Series™ PC53P is a Grade 1 entrance lock built for commercial spaces that need flexible, reliable access control. Its standout feature is the dual-mode push/turn button on the inside lever — giving you two levels of lockout control from a single lock, without any additional hardware.

 Built on the trusted PC Series platform with fast ANSI 161 installation and a no-adjustment chassis.

Function:

• Push button: Locks outside lever; released by key outside or rotating inside lever
• Push & turn button: Locks outside lever in sustained mode; key outside retracts latch but does not release button — rotate inside button to start position to unlock
• In unlocked state, latch retracted by either lever
• Inside lever always free for immediate egress
• Deadlatch included

Certifications & Ratings:

• ANSI/BHMA A156.2-2022, Series 4000 Grade 1
• UL Listed for 3-hour fire door applications

Technical Specifications:

• Backset: 2-3/4" (70mm)
• Door Thickness: 1-3/8" to 1-3/4"
• Latch Bolt: 1-1/8" x 2-1/4", square corner faceplate, 1/2" throw
• Strike: ANSI curved lip, 1-1/4" x 4-7/8" x 1-3/16"
• Cylinder: 6-pin solid brass, S123 keyway, keyed different (KD)
• Keys Included: Two nickel silver cut keys per lock
• Base Material: Zinc and Steel
• Rose Diameter: 3-11/25"
• Handing: Non-handed
