Schlage PC80P Grade 1 Storeroom Cylindrical Lock

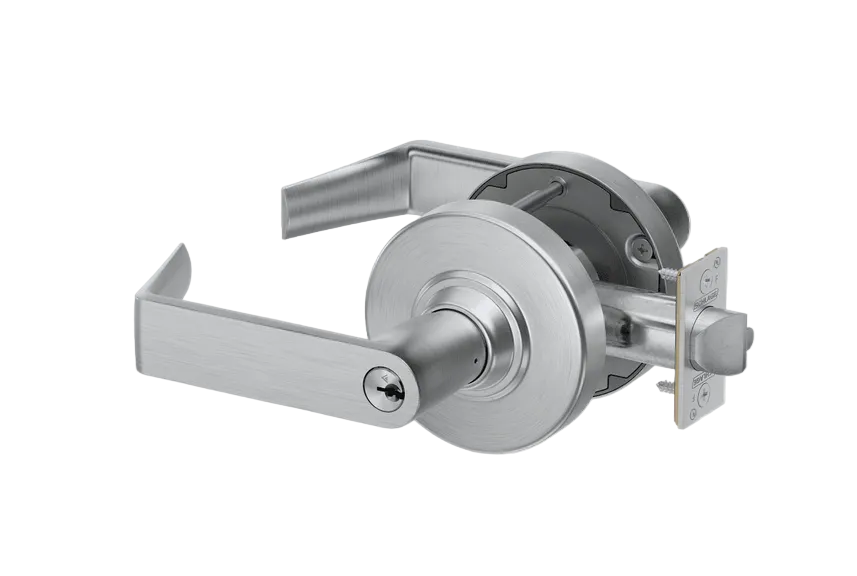

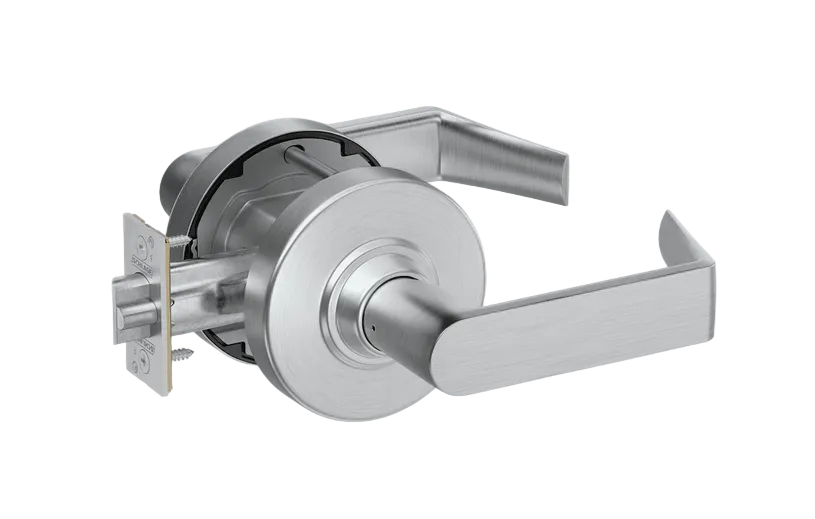

Schlage PC80P Grade 1 Storeroom Cylindrical Lock, Conventional Cylinder

When access control matters, the Schlage Performance Series™ PC80P delivers. Engineered for commercial real estate, retail, multifamily, and hospitality applications, this Grade 1 storeroom lock combines heavy-duty construction with a streamlined installation process — so your doors are secured faster and stay that way longer.

Function:

Outside lever always fixed — key required to retract latch from outside
Inside lever always free for immediate egress
Key in outside lever retracts latch only
Request to Exit (RX) available — kit sold separately

Certifications & Ratings:

ANSI/BHMA A156.2-2022, Series 4000 Grade 1
UL Listed for 3-hour fire door applications

Technical Specifications:

Backset: 2-3/4" (70mm)
Door Thickness: 1-3/8" to 1-3/4"
Latch Bolt: 1-1/8" x 2-1/4", square corner faceplate, 1/2" throw
Strike: ANSI curved lip, 1-1/4" x 4-7/8" x 1-3/16"
Cylinder: 6-pin solid brass, S123 keyway, keyed different (KD)
Keys Included: Two nickel silver cut keys per lock
Base Material: Zinc and Steel
Rose Diameter: 3-11/25"
Handing: Non-handed

More Information

Specifications	Base Material: Zinc and Steel Cylinder Type: Conventional Cylinder Door Thickness: 1-3/8" to 1-3/4" Fire Rated: Yes Function: PC80-Storeroom Lock Function Family: Storeroom Handing: Non-Handed Rose Dimensions: 3-11/25" Diameter Std. Latch Backset Dim: 2-3/4" Std. Strike Height: 4-7/8" Std. Strike Type: ANSI Strike Std. Strike Width: 1-1/4"
