Select Hinges SL57 HD600 83 Full-Surface Continuous Hinge, 83"

Select Hinges SL57 Heavy-Duty Full-Surface Continuous Hinge

The Select Hinges SL57 CL HD600 83 is an 83-inch geared continuous hinge for commercial door installations. This heavy-duty model supports doors weighing up to 600 lbs. and features a clear anodized aluminum finish. Its full-surface design fits a narrow 7/8-inch frame face, helping you match the hinge to your existing door and frame dimensions.

Key Features

• BHMA Grade 1 certified: SL57 geared continuous hinges are certified to Grade 1.
• Heavy-duty capacity: Rated for doors weighing up to 600 lbs.
• Narrow-frame fit: Fits a 7/8-inch frame face.
• Door leaf cover: Tamper-resistant and removable.

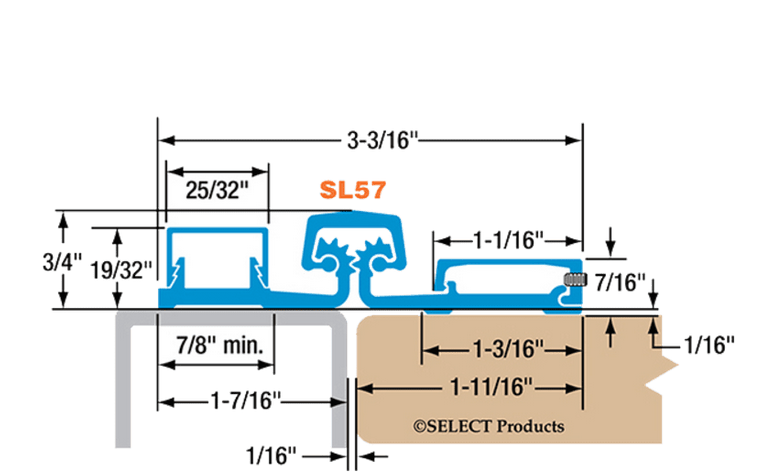

Dimensions and Door Compatibility

• Model / SKU: SL57 CL HD600 83
• Length: 83 inches
• Hinge type: Full-surface geared continuous hinge
• Door inset: 1/16 inch
• Standard barrel nuts: Accommodate doors 1-3/8 to 1-3/4 inches thick
• Long barrel nuts: Available for doors 2 to 2-1/4 inches thick

Before ordering, confirm your door weight, thickness, frame face width, and required hinge length. Thicker doors require the appropriate long barrel nuts.

View the Select Hinges SL57 manufacturer specification sheet for installation and application details.
