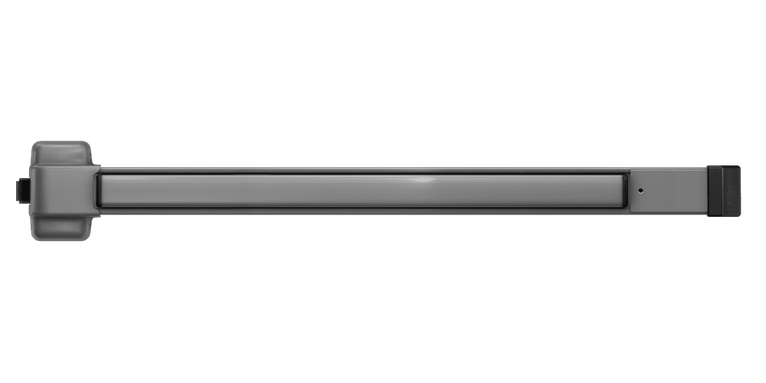

Von Duprin 22EO/22EO-F Grade 1 Rim Exit Device, Wide Stile Pushpad, 48", Exit Only

SKU: 22EO-F 4 622

Brand : Von Duprin

In Stock

Usually Ships Next Day

Finish: 622

Rating: Fire Rated

Fire Rated Panic Rated

Product variants

Quantity:

Subtotal: $531.00

Questions? Live Chat, Email or Call 332-255-3200

Secured and trusted checkout with

Von Duprin 22EO Grade 1 Rim Exit Device, Wide Stile Pushpad, 48", Exit Only

Device lengths: 4' (1219 mm)
Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
Latch bolt: Deadlocking, 3 /4" (19 mm) throw
Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
Dogging feature: Hex key dogging standard
Dogging options: LD less dogging
Strikes: 299 – Dull black

Specifications	Physical Appearance: Wide Stile Pushpad Device Type: Rim Door Material: Metal or Wood Includes Cylinder(s): No Device Length: 48" Door Thickness: 1-3/4" to 2-1/4" Cylinder Type: Non-Keyed Dogging Options: Hex Key Dogging (Fire-Rated: Less Dogging) Handing: Non-Handed Mechanical Function: Exit Only, Accepts Various Trim Includes Trim: No Minimum Stile Size: 3-13/16" Door Width: 26-1/2" to 36"
UPC	722208645685
