Quick Overview
- Grade 1
- Fail Secure (Electrically Unlocked) 24 VDC
- 6" x 1-5/8" Faceplate
- Fire Rated
Secured and trusted checkout with

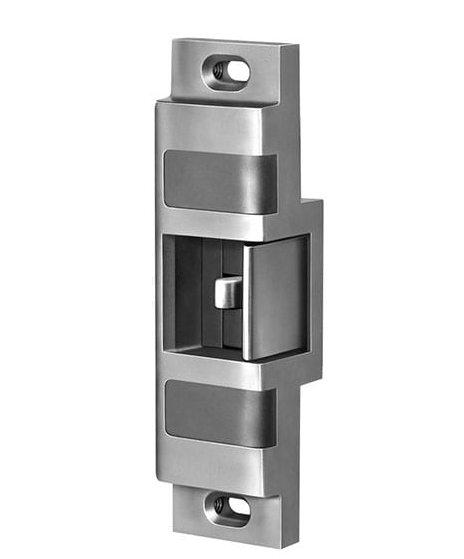

Von Duprin 6111 24V Grade 1 Fire-Rated Electric Strike for Rim Exit Devices
For use with Rim Exit Devices on Single Doors or Double Doors with Mullion, Hollow Metal, Aluminum, or Wood Frame
The 6100 Series is designed to withstand abuse. Its heavy-duty stainless steel construction is fully UL1034 and UL10C Listed and ANSI/BHMA Grade 1, 1500 lb hold force rated.
- Non-handed design provides greater flexibility
- Strike box is adjustable to compensate for misalignment of the door or frame
- Two piece plug connectors are furnished for ease of installation and for removal during strike servicing § ANSI 156.5 Grade 1, 1500 lb hold force rated
- UL1034 burglary-resistant and UL10C electric strike for fire door
- Six finishes available to suite with existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs § Dynamic strength 70 ft-labs
- Endurance 1,000,000 cycles
| Specifications |
|
|---|---|
| UPC | 722208645516 |
