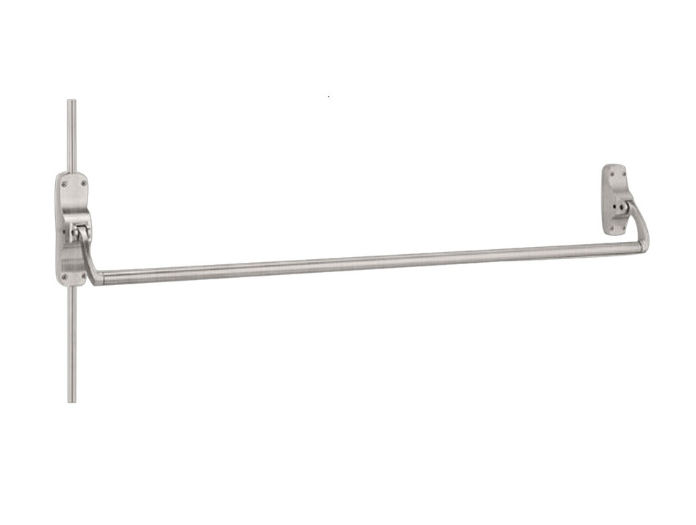

Von Duprin 8847F Fire Rated 3' Wide Stile Crossbar Concealed Vertical Rod Exit Device, Less Dogging, Satin Chrome

Von Duprin 8847F Fire Rated 3' Wide Stile Crossbar Concealed Vertical Rod Exit Device, Less Dogging, Satin Chrome

8847-F fire exit concealed vertical rod devices for all types of 8'x8' (2438 mm x 2438 mm) double metal doors, UL listed, 3 hours and fits door stiles as narrow as 4 3/4" (121mm).

• Device function: L-BE: Lever, Blank Escutcheon
• Handing: Field reversible
• Crossbar length 30" for 3' door
• Device centerline: 39-13/16"
• Crossbar centerline to finished floor: 36-13/16" (935 mm) at center
• Lock stile case: 8-1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
• Hinge stile case: 6" x 1-3/4" x 15/16" (152 mm x 44 mm x 24 mm)
• Crossbar projection:
  • Neutral – 4-3/4" (121 mm)
  • Depressed – 4" (102 mm)
• Crossbar tubing: 1" (25 mm) outside diameter
• Vertical rod: 3/8" (10 mm) hexagon
• Latch bolt: 5/8" (16 mm) throw
• Fasteners: All necessary mounting fasteners are included
• Finishes: 626 Satin Chrome

Trim Included: L-BE Lever, blank escutcheon, 06 Lever Design, Satin Chrome-
