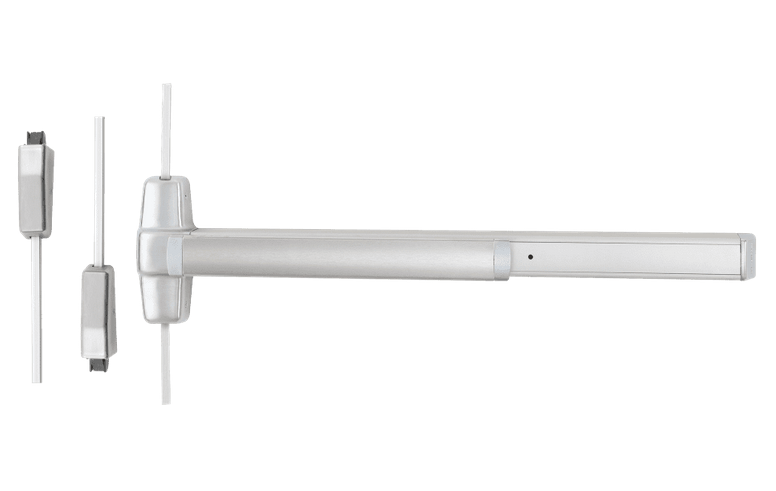

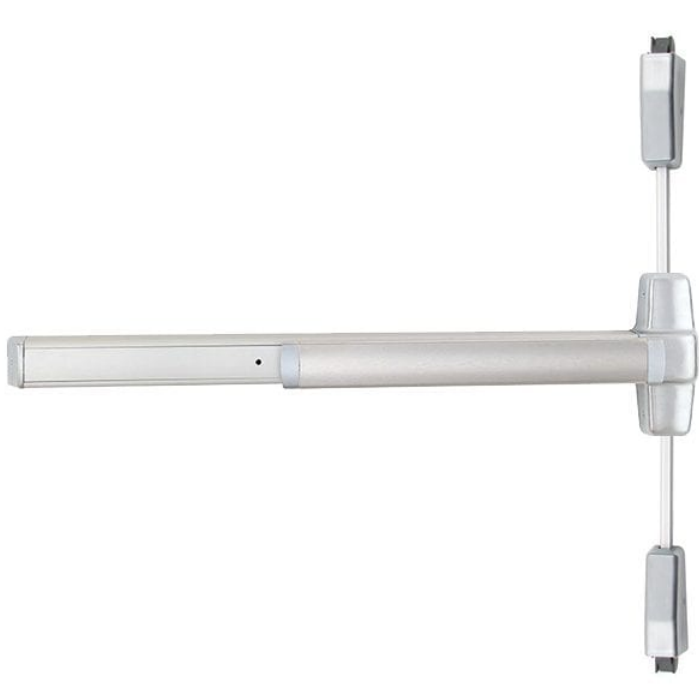

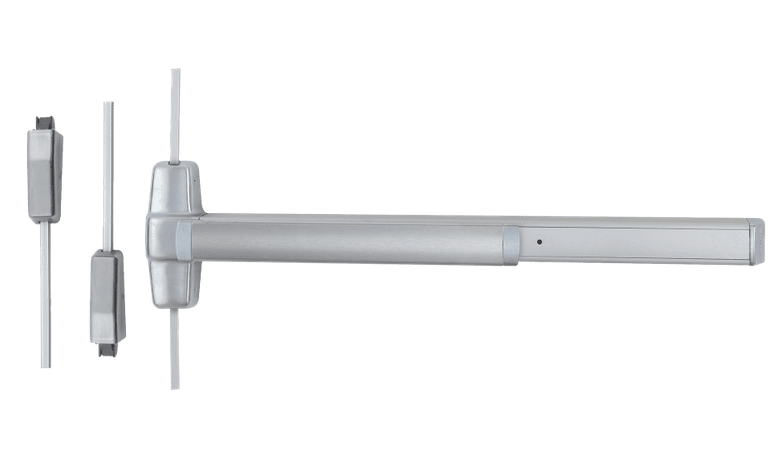

Von Duprin 9827NL Grade 1 Surface Vertical Rod Exit Bar, 36" Panic Device

SKU: 9827NL 3 US28

Brand : Von Duprin

In Stock

Usually Ships Next Day

Finish: US28 - Clear Anodized Aluminum

Product variants

Quantity:

Subtotal: $2,035.00

Questions? Live Chat, Email or Call 332-255-3200

Secured and trusted checkout with

Von Duprin 9827L-NL Grade 1 Surface Vertical Rod Exit Bar, 36" Panic Device

9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware.
Devices are certified to ANSI/BHMA A156.3 2014, Grade 1
Covers stock hollow metal doors with 86 or 161 cutouts
The 9827 device has a smooth mechanism case
The surface vertical rod device is non-handed
Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Specifications	Handing: Field Reversible Cylinder Type: Rim Physical Appearance: Wide Stile Pushpad Mechanical Function: Night Latch Includes Trim: Yes Includes Cylinder(s): No Reversible: Yes Door Width: 28" - 36" Device Length: 36" Fire Rated: No Dogging Options: Hex Key Dogging Trim Type: Pull Trim Design: Escutcheon Pull Trim Part No.: 990NL-R/V 26D Top Strike: 299 Door Height: 84" Door Thickness: 1-3/4" Device Type: Surface Vertical Rod Door Material: All Types Minimum Stile Size: 3-11/16" Strike Bottom: 248L4 / 304L
UPC	722208645851
