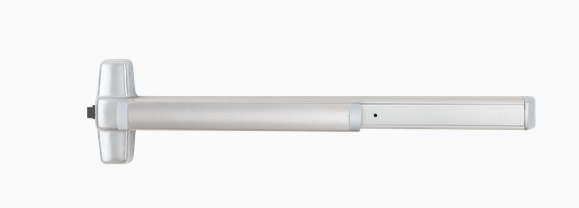

Von Duprin 98NL 3 32D Grade 1 Rim Exit Device, 36", Nightlatch, Hex Key Dogging, Pull, 1-1/4" Mortise & Rim, Satin Stainless Steel Finish, Non-Handed

Von Duprin 98NL 3 32D Grade 1 Rim Exit Device, 36", Nightlatch, Hex Key Dogging, Pull, 1-1/4" Mortise & Rim, Satin Stainless Steel Finish, Non-Handed

SKU: 98NL 3 32D

Brand :

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$1,679.88
$1,679.88
Subtotal: $1,679.88
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

Von Duprin 98NL Grade 1 Rim Exit Device, 36", Nightlatch, Hex Key Dogging, Pull, 1-1/4" Mortise & Rim, Satin Stainless Steel Finish, Non-Handed

Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.

Specifications:

  • Device function: NL- Nightlatch
  • Device lengths: 3' , 2'4' - 3'  Door size
  • Device centerline from finished floor: 39 13/16", 39 11/16" with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8"
  • Mechanism case dimensions: 2 1/4" x 2 1/4"
  • Projection: Pushbar neutral – 3 13/16", Pushbar depressed – 3 1/16"
  • Latch bolt: Deadlocking, 3/4"  throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4"  and 2 1/4"  thick metal or wood doors.
Read more
More Information
Specifications
  • Physical Appearance
    Wide Stile Pushpad
  • Device Type
    Rim
  • Includes Trim
    Yes
  • Includes Cylinder(s)
    No
  • Minimum Stile Size
    4-1/2"
  • Device Length
    36"
  • Fire Rated
    No
  • Door Thickness
    1-3/4" to 2-1/4"
  • Dogging Options
    Hex Key Dogging
  • Door Width
    28" to 36"
  • Trim Type
    Pull
  • Trim Design
    Escutcheon Pull
  • Trim Part No.
    990NL-R/V 26D
  • Reversible
    No
  • Door Material
    Wood or Metal
  • Handing
    Non-Handed
  • Mechanical Function
    Nightlatch
  • Cylinder Type
    1-1/4" Mortise & Rim
