SKU: 9927EO-F 3 313-LBR

Brand : Von Duprin

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$2,120.90
$2,120.90

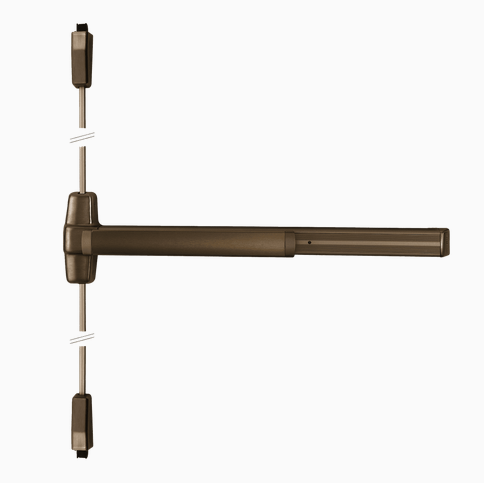

Finish: 313
Length: 36''
Rating | Less Bottom Rod: Fire Rated | Less Bottom Rod
Subtotal: $2,120.90
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • Grade 1
  • Wide Stile Pushpad
  • Exit Only, Less trim
  • Field Reversible

Secured and trusted checkout with

Details

Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim

Surface mounted vertical rod device.

9927 series surface vertical rod exits are made for high traffic environments.

  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8" (1006 mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
  • Door undercut 1 /4" (7mm) recommended
  • Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
  • Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
  • Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch.
Read more
More Information
Specifications
  • Handing: Field Reversible
  • Physical Appearance: Wide Stile Pushpad
  • Includes Cylinder(s): No
  • Door Width:
    36" Device: 28" - 36"
    48" Device: 34" - 48"
  • Cylinder Type: Non-Keyed
  • Dogging Options:
    Panic Rated: Hex Key Dogging
    Fire Rated: Less Dogging
  • Top Strike: 299
  • Door Height: 84"
  • Door Thickness: 1-3/4"
  • Device Type: Surface Vertical Rod
  • Door Material: All Types
  • Minimum Stile Size: 3-11/16"
  • Mechanical Function: Exit Only, Accepts Various Trim
  • Includes Trim: No
  • Strike Bottom: 248L4 / 304L
Literature
literature
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim

Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim

Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim
Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim

Von Duprin 9927EO Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less trim

$2,120.90
Finish: 313
Length: 36''
Rating | Less Bottom Rod: Fire Rated | Less Bottom Rod
Compare color
  • 313

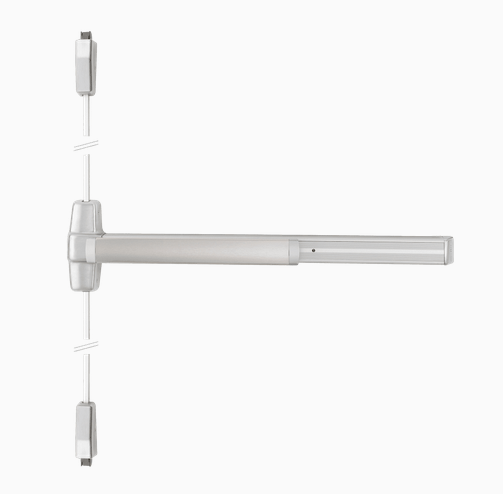

  • us26d

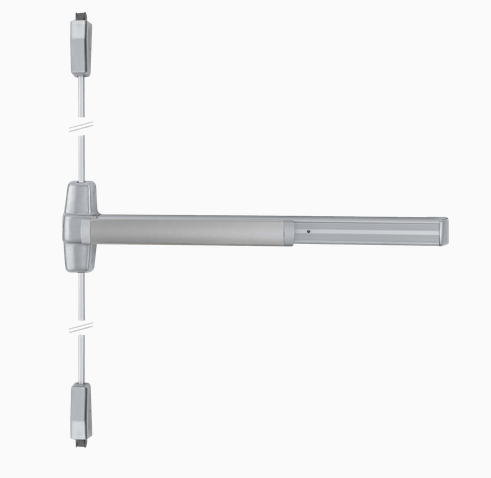

  • us28

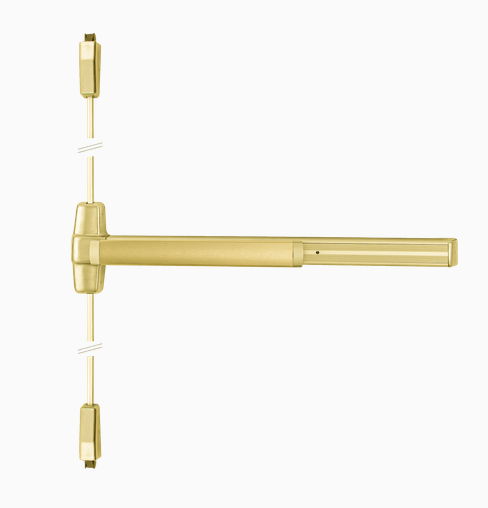

  • us4
