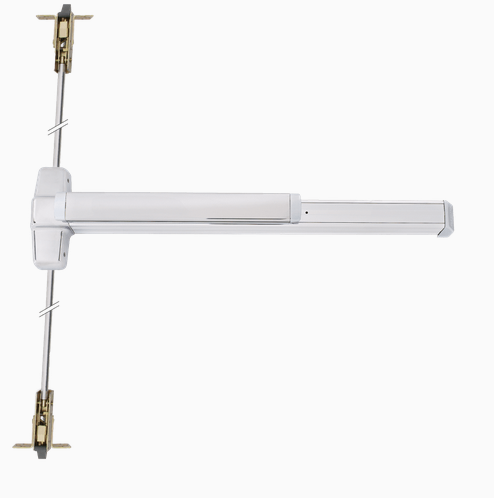

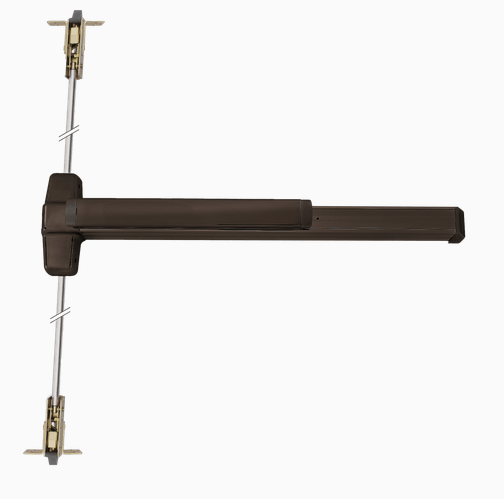

Von Duprin 9947EO Grade 1 Concealed Vertical Rod Exit Bar, 36" Device, 80" to 100" Door Height, Exit Only
Von Duprin 9947EO Grade 1 Concealed Vertical Rod Exit Bar, 36" Device, 80" to 100" Door Height, Exit Only
Von Duprin 9947EO Grade 1 Concealed Vertical Rod Exit Bar, 36" Device, 80" to 100" Door Height, Exit Only

Von Duprin 9947EO Grade 1 Concealed Vertical Rod Exit Bar, 36" Device, 80" to 100" Door Height, Exit Only

SKU: 9947EO 3 313

Brand : Von Duprin

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$1,925.65
$1,925.65
Finish: 313
Subtotal: $1,925.65
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • Grade 1
  • Wide Stile Pushpad
  • 36" Device, 80" to 100" Door Height
  • Exit Only
  • Field Reversible

Secured and trusted checkout with

Details

Von Duprin 9947EO Grade 1 Concealed Vertical Rod Exit Bar, 36" Device, 80" to 100" Door Height, Exit Only

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1 with a grooved case.

  • Device lengths: 3' — 2' 4' to 3' (711 mm to 914 mm) door size
  • Device centerline from finished floor:
    • 39-5/8" (1006 mm) Standard
    • Adjustable from 35-5/8" (905 mm) to 49-5/8" (1260 mm)
  • Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
  • Mechanism case dimensions: 2-1/4" x 2-1/4" (57 mm x 57 mm)
  • Projection:
    • Pushbar neutral — 3-13/16" (97 mm)
    • Pushbar depressed — 3-1/16" (78 mm)
  • Latch bolt: Deadlocking top & bottom bolt, 5/8" (16 mm) throw
  • Door undercut: 1/4" (7 mm) recommended
  • Top & bottom Latch case: 4-1/2" x 2-1/8" x 1-1/2" (114 mm x 54 mm x 38 mm)
  • Vertical rods:
    • Round 2-piece adjustable rods
    • Top rod adjustable from 6' 8" (2027 mm) to 8'4" (2533 mm).
    • Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm).
    • Extension rod kits available for doors over 8' 4" (2533 mm).
  • Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) to 2-1/4" (57 mm) thick metal doors.
Read more
More Information
Specifications
  • Handing: Field Reversible
  • Door Thickness: 1-3/4" - 2-1/4"
  • Physical Appearance: Wide Stile Pushpad
  • Includes Cylinder(s): No
  • Device Length: 36"
  • Fire Rated: No
  • Cylinder Type: Non-Keyed
  • Dogging Options: Hex Key Dogging
  • Door Width: 28" to 36"
  • Door Material: Hollow Metal
  • Device Type: Concealed Vertical Rod
  • Top Strike: 338
  • Strike Bottom: 385A
  • Door Height: 80" to 100"
  • Minimum Stile Size: 3-11/16"
  • Mechanical Function: Exit Only, Accepts Various Trim
  • Includes Trim: No
