SKU: 99EO 4 313

Brand : Von Duprin

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$1,312.20
$1,312.20
Finish: 313
Length: 48''
Rating: Panic Rated
Subtotal: $1,312.20
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

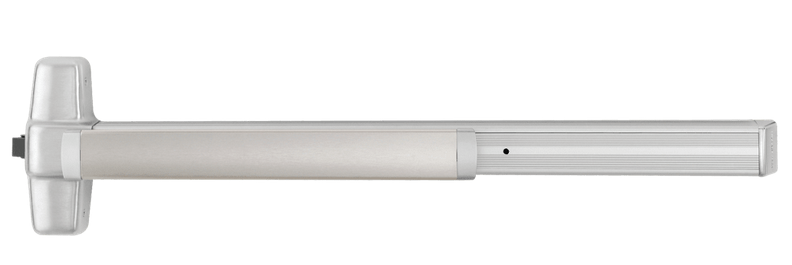

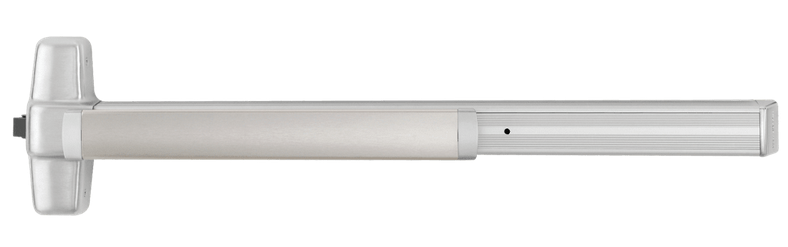

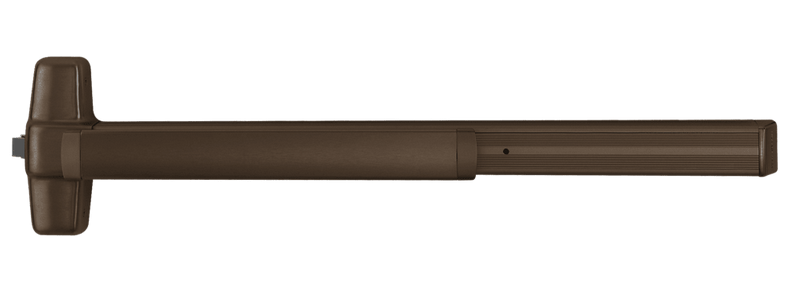

Von Duprin 99EO Grade 1 Rim Exit Device, Wide Stile Pushpad, Exit Only, Less Trim

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

Von Duprin 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 99 device has a grooved case.

  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking, 3/4" (19mm) throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors.
Read more
More Information
Specifications
  • Physical Appearance: Wide Stile Pushpad
  • Device Type: Rim
  • Door Material: Metal or Wood
  • Includes Cylinder(s): No
  • Door Width:
    36" Device: 28" - 36"
    48" Device: 34" - 48"
  • Door Thickness: 1-3/4" to 2-1/4"
  • Cylinder Type: Non-Keyed
  • Dogging Options:
    Panic Rated: Hex Key Dogging
    Fire Rated: Less Dogging
  • Handing: Non-Handed
  • Mechanical Function: Exit Only, Accepts Various Trim
  • Includes Trim: No
  • Minimum Stile Size: 3-5/8"
  • Trim Design: Less Trim
