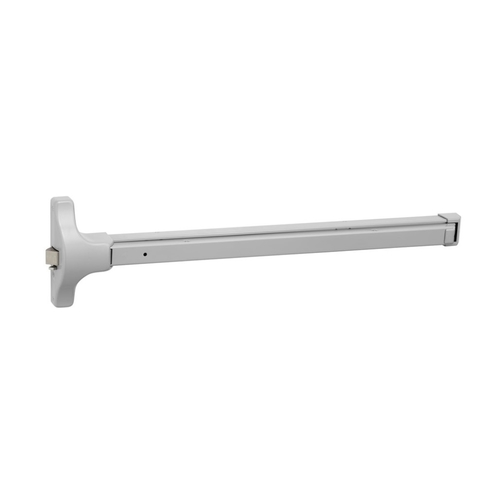

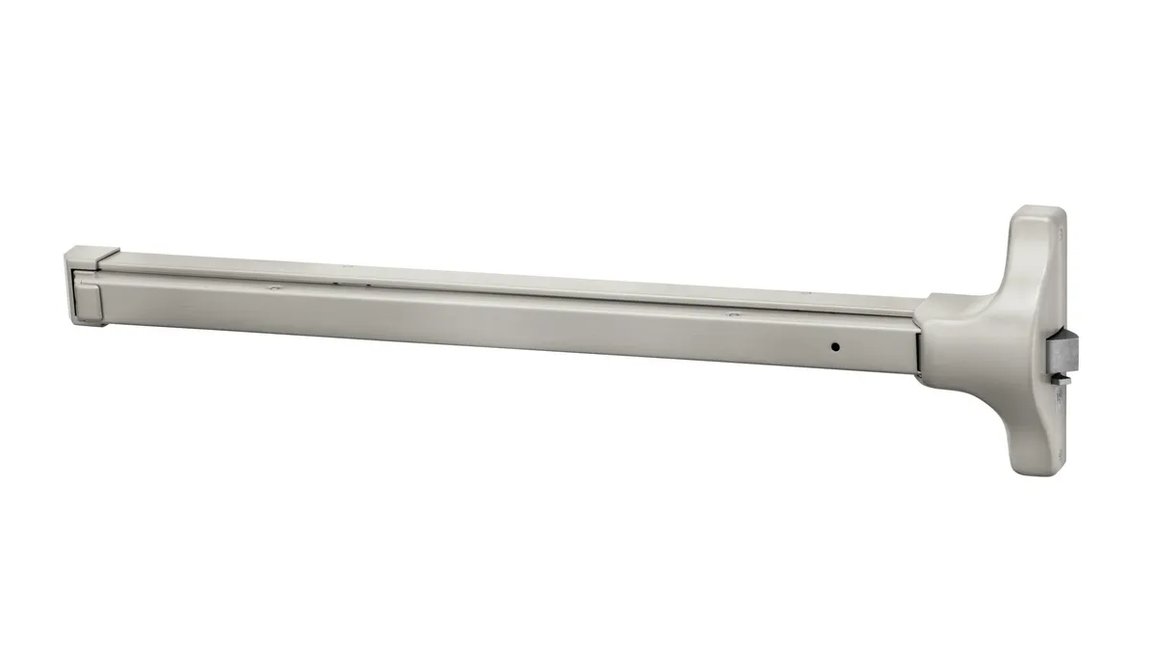

ACCENTRA 2100 Grade 1 Rim Exit Device

SKU: 2100 x 36 x 630

Brand : ACCENTRA (Formerly Yale)

In Stock

Usually Ships Next Day

$357.50; $357.50
Unit price: per

Finish: 630

Rating: Panic Rated

Panic Rated Fire Rated

Size: 36"

36" 48"

Product variants

Quantity:

Subtotal: $357.50

Questions? Live Chat, Email or Call 332-255-3200

Quick Overview

Applications:

Single swing doors
Pairs of doors (mullion required)
Metal, wood or composite door materials

Secured and trusted checkout with

Details

ACCENTRA 2100 Grade 1 Rim Exit Device

The 2100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. The 2100(F) can be paired with a wide variety of trims to meet many applications.

Features:

Designed for wide stile doors
Non-handed for easy installation
Steel interlock “E” bracket maintains door-to-mullion relationship in fire-labeled devices
Deadlocking pullman latchbolt positively engages roller strike

Certification/Compliance:

UL/cUL Listed: FVSR/FVSR7 - Panic hardware
GXHX/GXHX7 - Fire exit hardware (F)
(4' x 8' single, 8' x 8' pairs, 3 hr.)
ZHEM - Latching hardware

More Information

Specifications	Door Opening Width: 36 for 30" - 36" (76cm - 91cm) doors 48 for 42" - 48" (107cm - 122cm) doors Door Thickness: 1-3/4" (44mm) standard Minimum Stile Width: 4-1/2" (114mm) Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type Strike: 757F, 793 optional (double door application, panic only) Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware. Trims: 121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim. See pages 13-21. ANSI/BHMA Certified: A156.3 Type 1, Grade 1 Dogging: Hex key dogging supplied standard on panic devices
UPC	722208640450

Specifications

Door Opening Width:
- 36 for 30" - 36" (76cm - 91cm) doors
- 48 for 42" - 48" (107cm - 122cm) doors
Door Thickness: 1-3/4" (44mm) standard
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
Strike: 757F, 793 optional (double door application, panic only)
Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
Trims: 121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim. See pages 13-21.
ANSI/BHMA Certified: A156.3 Type 1, Grade 1
Dogging: Hex key dogging supplied standard on panic devices
