Yale 357 Cylinder x Thumbturn Mortise Deadlock

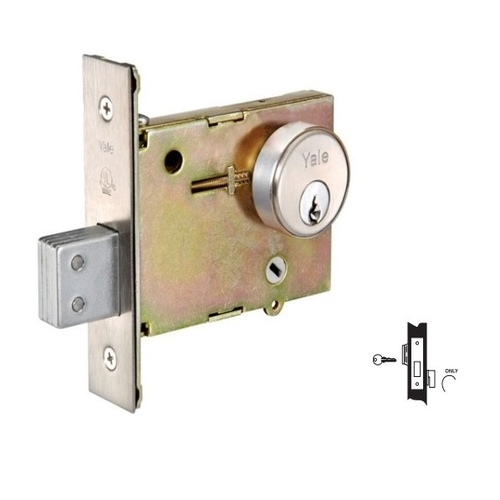

ACCENTRA 357 Single Cylinder x Thumbturn Mortise Deadlock

The ASSA ABLOY ACCENTRA® 350 Series Mortise Deadlock is a heavy-duty mortise deadlock that provides the ultimate security. Available in a range of functions, you can expect the highest quality and dependable security from this product.

Function: Deadbolt operated by key outside. Inside thumbturn will retract deadbolt, but will not project it. Uses classroom function mortise lockbody. (lockbody p/n 50-0357-0001-999)

Application: Mortise installation for 1 3/4" (44mm) doors
Backset: 2 3/4" (70mm) only.
Door Prep: The 350 series mortise deadlocks conform to ANSI/BHMA Specifications A156.115 which cover hardware preparations for steel doors and steel frames and A156.115-W which cover hardware preparations for wood doors with wood or steel frames.
Fire Listings: 350 series deadlocks, when used in conjunction with the primary latching device, are UL - cUL listed for use on fire doors having a rating up to and including 3 hours. In addition, the 350 series are cUL listed for use on wood doors having a rating up to and including 90 minutes.
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ACCENTRA (Formerly Yale) Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Handing: Non-handed and easily field reversible.
Deadbolt: Laminated stacked steel with hardened pin, 1" (25mm) throw.

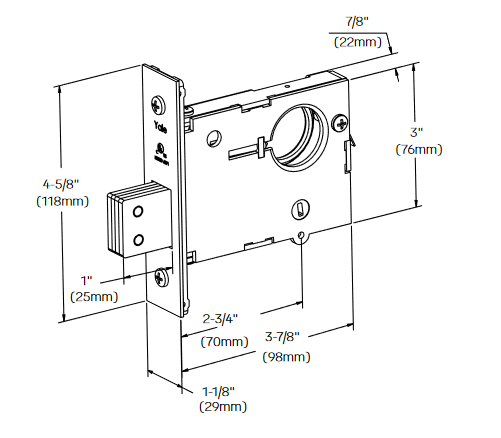

Front: 4 5/8" x 1 1/8" (117mm x 29mm) Brass, bronze or stainless steel. Adjustable to accommodate flat or beveled-edged doors (bevel adjustment 1/8" in 2" (3mm in 51mm).
Case: Heavy wrought steel, zinc plated and dichromated.
Strike: 3 1/2" x 1 1/8", model number 30S provided standard.
