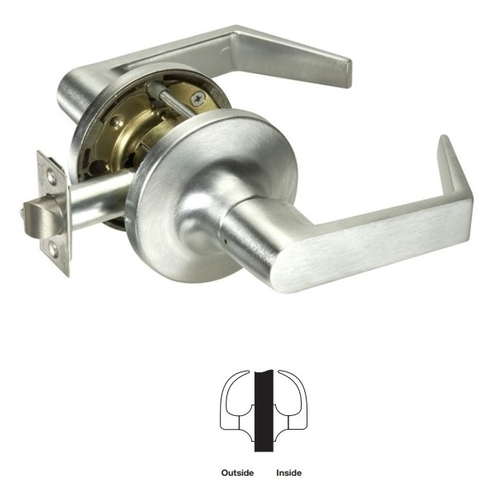

Yale 455LN-D Grade 1 Double Dummy Trim

ACCENTRA (Formerly Yale) 455LN-D Grade 1 Double Dummy Trim

Designed for mechanical and commercial use, the ACCENTRA (Formerly Yale) 5400LN Series heavy-duty cylindrical lockset offers rough unwavering quality and durability in a range of functions. With innovative features such as our Free Wheeling lever mechanism, wear-resistant chassis plates, heavy-duty lever return springs and thrubolting, this Grade 1 workhorse is voted best for uses that require dependable access and security each day. Backed with a lifetime warranty, you’ll never have to worry about lever sag or spring breakage.

Function:

For non-operational lever used for decorative trim

Features:

Heavy Duty construction features wear-resistant chassis plates, longer thread-locking thru-bolts, lifetime warrantied lever return springs and stainless steel latchbolt for exceptional strength and durability
Free Wheeling lever mechanism prevents vandalism and reduces maintenance
Adjustable rose allows for easy adjustments on different door thicknesses
Available in 3 lever designs and 12 architectural finishes
ADA compliant for ease oof accessiblity
Non-handed, field reversible

More Information

Specifications	ANSI/BHMA: A156.2, Series 4000 Grade 1 UL/cUL: UL/cUL fire-rated up to 3 hours Windstorm: Certified (refer to local codes) Mechanism: Heavy-gauge steel, zinc-plated, dichromated Backset: 2 3/4" standard Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions Door Thickness: Adjustable from 1 3/4" - 2 1/4" Fronts: 2 1/4" x 1 1/8" beveled standard Reversibility: Non-handed Strikes: 1 1/4" curved lip for 1 3/4" door standard Warranty: 7-year mechanical
UPC	722208643338

Specifications

ANSI/BHMA: A156.2, Series 4000 Grade 1

UL/cUL: UL/cUL fire-rated up to 3 hours

Windstorm: Certified (refer to local codes)

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2 3/4" standard

Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1 3/4" - 2 1/4"

Fronts: 2 1/4" x 1 1/8" beveled standard

Reversibility: Non-handed

Strikes: 1 1/4" curved lip for 1 3/4" door standard

Warranty: 7-year mechanical
