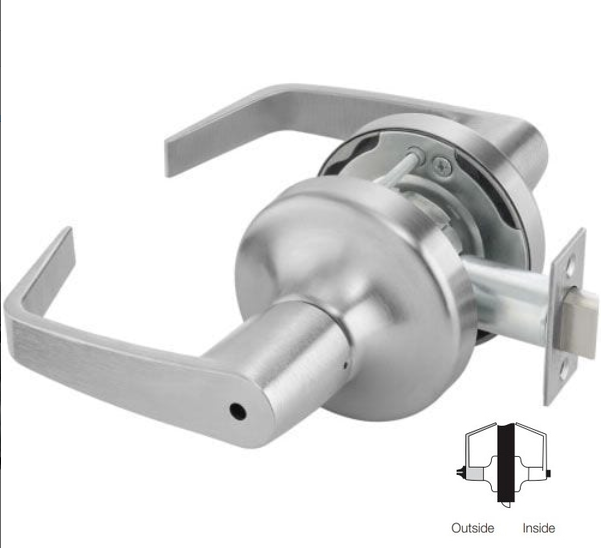

Yale 4725LN Grade 1 Privacy Lockset

ACCENTRA 4725LN Grade 1 Privacy Cylindrical Lock

ASSA ABLOY ACCENTRA® 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

Function:

For lavatory or other privacy doors.
Either lever operates latchbolt (except when outside lever is locked by inside pushbutton).*
Button automatically releases by turning inside lever or closing door.
Door can be unlocked, when necessary, by operating outside turnbutton.
No emergency key required.
Optional flush turnbutton available for outside. Specify option "FTB"

*Lever handles are Free-Wheeling in locked position. Shaded area denotes FreeWheeling lever.

Features:

Free Wheeling lever mechanism prevents vandalism and reduces maintenance
Available in 3 lever designs and 8 architectural finishes
ADA compliant for ease of accessiblity
Non-handed

More Information

Specifications	ANSI/BHMA: A156.2, Series 4000 Grade 1 UL-cUL: UL-cUL fire-rated up to 3 hours Windstorm: 4700LN Certified (refer to local codes) Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated Backset: 2 3/4" standard Latchbolt: 1/2" stainless steel throw standard Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions Door Thickness: Adjustable from 1 3/4" - 2" Fronts: 2 1/4" x 1 1/8" beveled standard; flat fronts available to order Reversibility: Non-handed Strikes: ANSI strike 4 7/8" x 1 1/4" x 1 1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.
UPC	722208643543

Specifications

ANSI/BHMA: A156.2, Series 4000 Grade 1
UL-cUL: UL-cUL fire-rated up to 3 hours
Windstorm: 4700LN Certified (refer to local codes)
Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
Backset: 2 3/4" standard
Latchbolt: 1/2" stainless steel throw standard
Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
Door Thickness: Adjustable from 1 3/4" - 2"
Fronts: 2 1/4" x 1 1/8" beveled standard; flat fronts available to order
Reversibility: Non-handed
Strikes: ANSI strike 4 7/8" x 1 1/4" x 1 1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.
