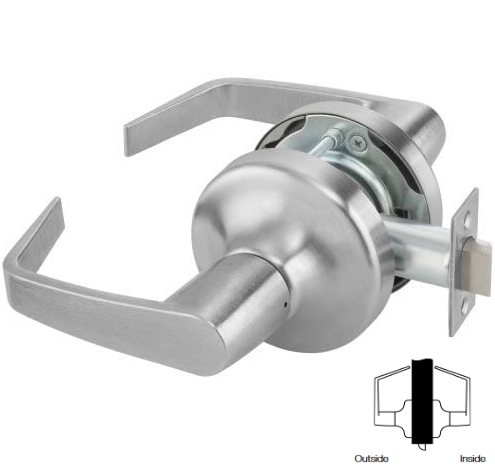

Yale 5301LN Grade 2 Passage or Closet Door Lever

ACCENTRA 5301LN Grade 2 Passage or Closet Door Leveset

The 5300LN Series Cylindrical Lever Lock is an excellent Grade 2 cylindrical lockset that provides innovative design and construction qualities. The Free Wheeling lever mechanism resists vandalism, and the adaptable door thickness feature allows for simple installation. You can depend on the 5300LN to withstand the rigors of daily use.

Function:

For doors that do not require locking.
Either Lever operates latchbolt at all times.

Features:

Free Wheeling lever mechanism for increased vandal resistance
Adjustable door thickness: Preset at factory for 1 3/4" - 2"
3 1/2" rose covers ANSI/BHMA door prep A156.115 “Spider Cut Out”
Through-bolts solidly through the door, providing greater stability
Lifetime warranty against lever sag and lever spring breakage

More Information

Specifications	ANSI/BHMA: A156.2, Series 4000 Grade 2 UL-cUL: UL-cUL fire-rated up to 3 hours Windstorm: Certified (refer to local codes) Mechanism: Heavy-gauge steel, zinc-plated, dichromated Backset: 2 3/4" standard; 2 3/8", 3 3/4" available to order Latchbolt: 1/2" stainless steel throw Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions Door Thickness: Adjustable from 1 3/4" - 2" Fronts: Universal for both flat and beveled door edges Reversibility: Non-handed Strikes: 1 1/4" curved lip for 1 3/4" door standard Warranty: 5-year mechanical
Amt of Finishes	10

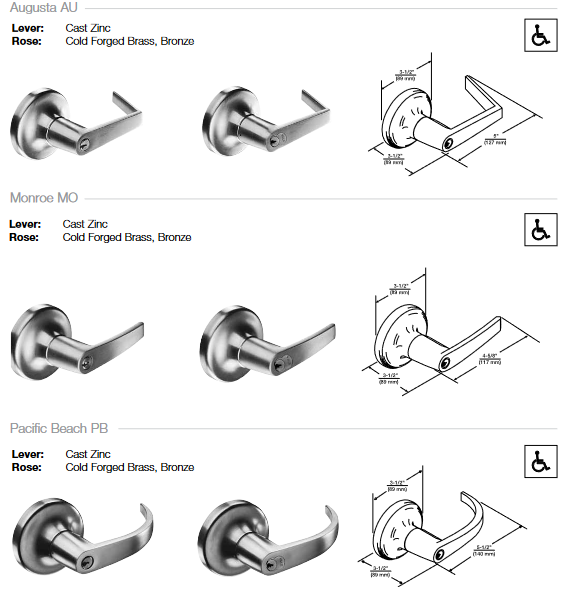

Amt of Lever Styles	3
UPC	722208640245
Usage	Standard Duty
