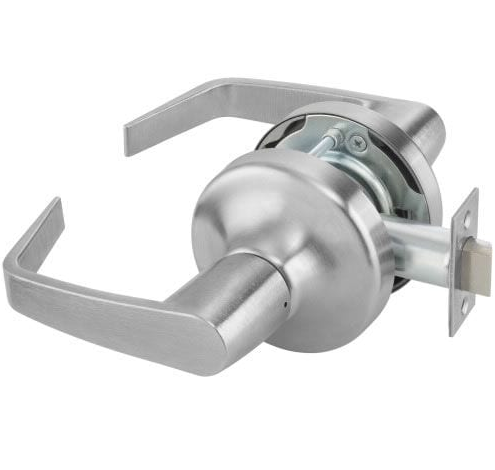

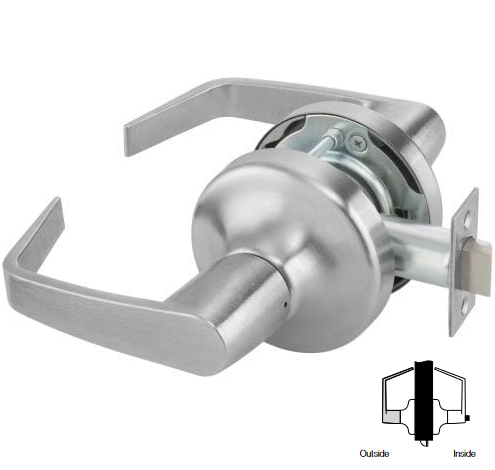

Yale 5303LN Grade 2 Patio or Privacy Lever Lock

ACCENTRA (Formerly Yale) 5303LN Grade 2 Patio or Privacy Leverset

The 5300LN Series Cylindrical Lever Lock is an excellent Grade 2 cylindrical lockset that provides innovative design and construction qualities. The Free Wheeling lever mechanism resists vandalism, and the adaptable door thickness feature allows for simple installation. You can depend on the 5300LN to withstand the rigors of daily use.

For exit doors with limited entry.

Function:

Deadlocking latchbolt.
Either lever operates latchbolt unless outside lever is locked by pushbutton inside.
Button automatically releases when inside lever is turned or door is closed.
Inside lever always active.

Features:

Free Wheeling lever mechanism for increased vandal resistance
Adjustable door thickness: Preset at factory for 1 3/4" - 2"
3 1/2" rose covers ANSI/BHMA door prep A156.115 “Spider Cut Out”
Through-bolts solidly through the door, providing greater stability
Lifetime warranty against lever sag and lever spring breakage

More Information

Specifications	ANSI/BHMA: A156.2, Series 4000 Grade 2 UL-cUL: UL-cUL fire-rated up to 3 hours Windstorm: Certified (refer to local codes) Mechanism: Heavy-gauge steel, zinc-plated, dichromated Backset: 2 3/4" standard; 2 3/8", 3 3/4" available to order Latchbolt: 1/2" stainless steel throw Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions Door Thickness: Adjustable from 1 3/4" - 2" Fronts: Universal for both flat and beveled door edges Reversibility: Non-handed Strikes: 1 1/4" curved lip for 1 3/4" door standard Warranty: 5-year mechanical
Amt of Finishes	10

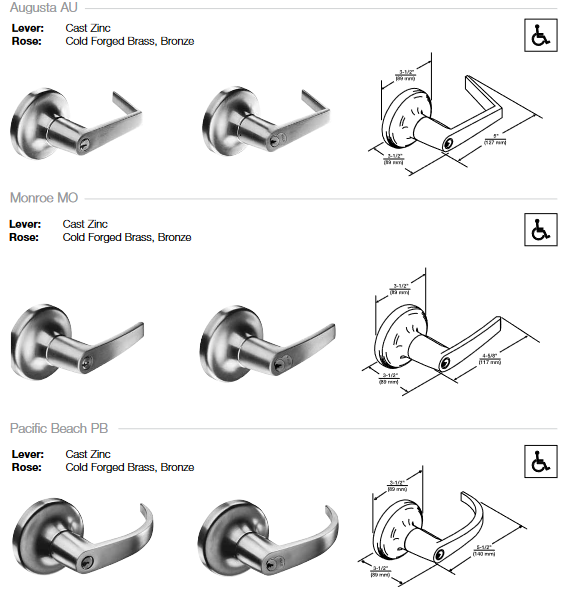

Amt of Lever Styles	3
UPC	722208640269
Usage	Standard Duty
