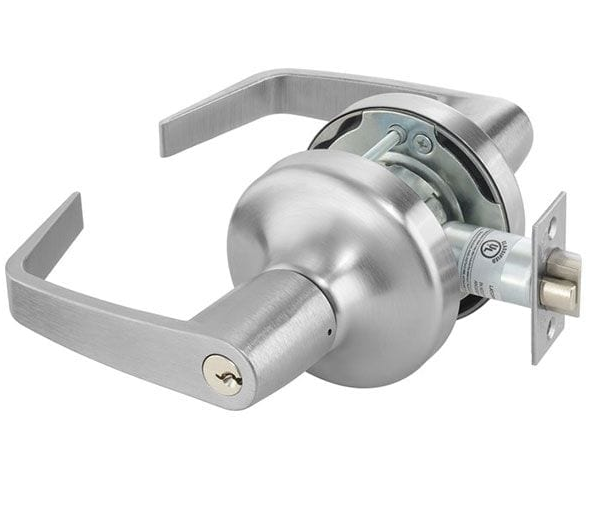

Yale 5304LN Grade 2 Entry Lockset

ACCENTRA 5304LN Grade 2 Entry Lockset

The 5300LN Series Cylindrical Lever Lock is an excellent Grade 2 cylindrical lockset that provides innovative design and construction qualities. The Free Wheeling lever mechanism resists vandalism, and the adaptable door thickness feature allows for simple installation. You can depend on the 5300LN to withstand the rigors of daily use.

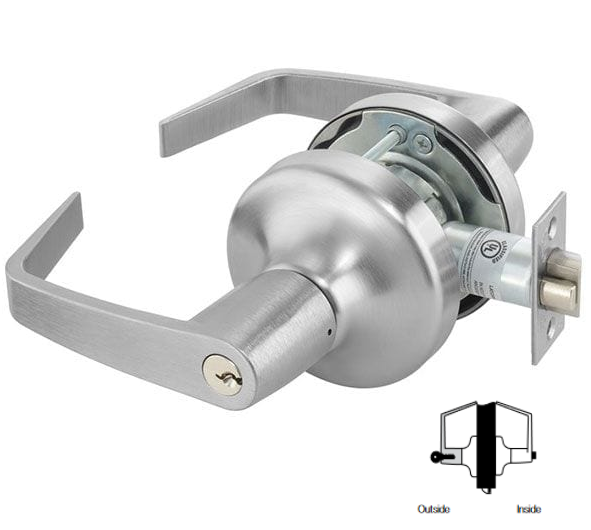

Function/For Entrance or Office Doors:

Deadlocking latchbolt.
Either lever operates latchbolt (except when outside lever is locked from inside).
Pushing button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
Latchbolt is operated by key in outside lever or by rotating inside lever.
Inside lever always active.

Features:

Free Wheeling lever mechanism for increased vandal resistance
Adjustable door thickness: Preset at factory for 1 3/4" - 2"
3 1/2" rose covers ANSI/BHMA door prep A156.115 “Spider Cut Out”
Through-bolts solidly through the door, providing greater stability
Lifetime warranty against lever sag and lever spring breakage

More Information

Specifications	ANSI/BHMA: A156.2, Series 4000 Grade 2 UL-cUL: UL-cUL fire-rated up to 3 hours Windstorm: Certified (refer to local codes) Mechanism: Heavy-gauge steel, zinc-plated, dichromated Backset: 2 3/4" standard; 2 3/8", 3 3/4" available to order Latchbolt: 1/2" stainless steel throw Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions Door Thickness: Adjustable from 1 3/4" - 2" Fronts: Universal for both flat and beveled door edges Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available. For other cylinder and keying options, contact us. Reversibility: Non-handed Strikes: 1 1/4" curved lip for 1 3/4" door standard; other lip lengths available to order; all reversible Warranty: 5-year mechanical
Amt of Finishes	10

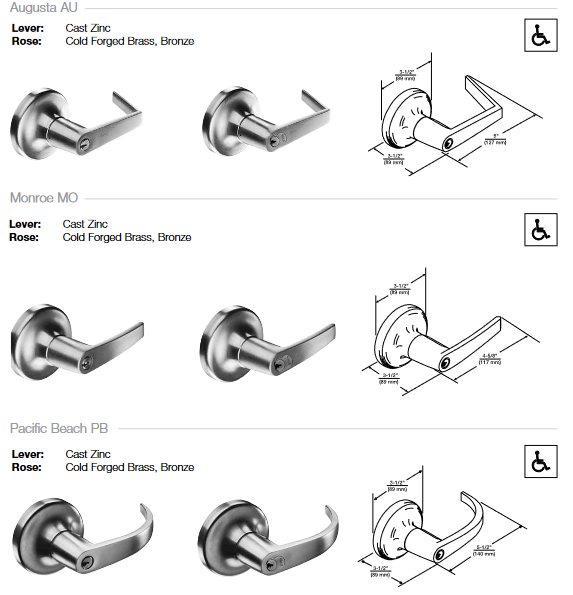

Amt of Lever Styles	3
UPC	722208640313
Usage	Standard Duty
