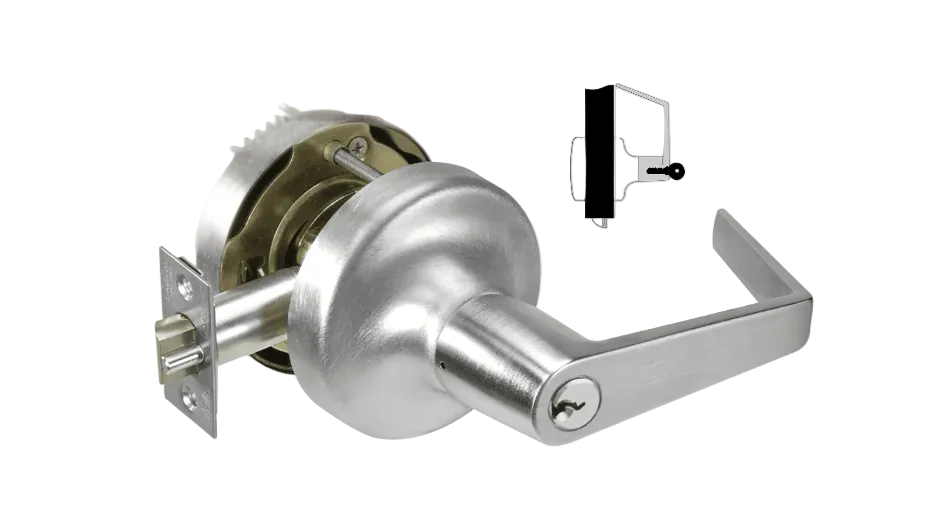

ACCENTRA 5329LN Grade 2 Communicating Classroom Cylindrical Lock

ACCENTRA 5329LN Grade 2 Communicating Classroom Cylindrical Lock

Function:

• For twin communicating or closet doors where one side operation is required or space between doors is limited.
• Deadlocking latchbolt.
• Inside lever operates latchbolt except when lever is locked by key.*
• Blank rose.
• Should be used only where rooms have more than one entrance. (NOTE: Not available with I.C. core cylinders)

Features:

• ANSI: Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
  Fire listings: UL - cUL Fire Label for all door functions up to 3 hours.
• Non-Handed : Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.
• Door Thickness: Locksets are preassembled for 1-3/8" (35mm) - 1-3/4" (44mm) doors. Preset at factory for 1-3/4" (44mm). Special order available for 2" (51mm) or 2-1/4" (57mm) thick doors please specify door thickness on order.
• Lock Chassis: Lockset chassis constructed of heavy-gauge steel and cast components, plated to protect against rust and corrosion
• Free wheeling lever trim: All locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.
• Backset: 2-3/4" (70mm) standard. Optional: 2-3/8", 3-3/4" (95mm) and Extensions links up to 6".
• Latchbolt: Stainless steel with 1/2" throw.
• Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). All latches have universal fronts, so they fit flat and beveled door fronts.
• Strike: Wrought brass, bronze or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
• Cylinder: Brass, 6-pin, E1R (PARA) keyway standard.
• Keys: Two nickel silver standard
