Yale 5409LN Grade 1 Exit Leverset| Park Avenue Locks

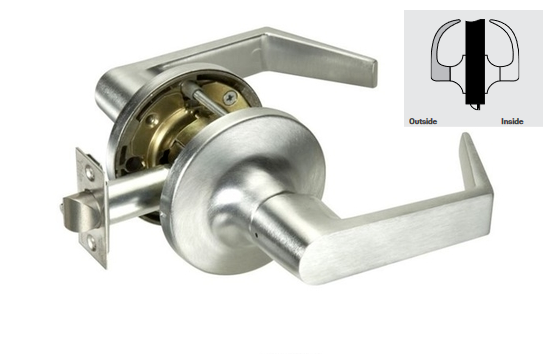

ACCENTRA 5409LN Grade 1 Exit Latch Cylindrical Lock

Designed for industrial and commercial use, the ASSA ABLOY ACCENTRA® 5400LN Series heavy-duty cylindrical lockset offers no compromise when it comes to rugged reliability and performance.

Function:

For exit doors with no-entry desired
Deadlocking latchbolt
Outside lever always locked
Inside lever always active

Features:

Heavy Duty construction features wear-resistant chassis plates, longer thread-locking thru-bolts, lifetime warrantied lever return springs and stainless steel latchbolt for exceptional strength and durability
Free Wheeling lever mechanism prevents vandalism and reduces maintenance
Adjustable rose allows for easy adjustments on different door thicknesses
Available in 3 lever designs and 12 architectural finishes
ADA compliant for ease of accessiblity
Non-handed, field reversible

More Information

Specifications	ANSI/BHMA: A156.2, Series 4000 Grade 1 UL/cUL: UL/cUL fire-rated up to 3 hours Windstorm: Certified (refer to local codes) Mechanism: Heavy-gauge steel, zinc-plated, dichromated Backset: 2 3/4" standard Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions Door Thickness: Adjustable from 1 3/4" - 2 1/4" Fronts: 2 1/4" x 1 1/8" beveled standard Reversibility: Non-handed Strikes: 1 1/4" curved lip for 1 3/4" door standard Warranty: 7-year mechanical
UPC	722208643291

Specifications

ANSI/BHMA: A156.2, Series 4000 Grade 1

UL/cUL: UL/cUL fire-rated up to 3 hours

Windstorm: Certified (refer to local codes)

Mechanism: Heavy-gauge steel, zinc-plated, dichromated

Backset: 2 3/4" standard

Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order

Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

Door Thickness: Adjustable from 1 3/4" - 2 1/4"

Fronts: 2 1/4" x 1 1/8" beveled standard

Reversibility: Non-handed

Strikes: 1 1/4" curved lip for 1 3/4" door standard

Warranty: 7-year mechanical
