Yale 7130 K5 Mortise Exit Device | Park Avenue Locks

Specifications	Door Opening Width: 24 for 24" (60cm) doors 36 for 30" - 36" (76cm - 91cm) doors 48 for 36" - 48" (91cm - 122cm) doors Door Thickness: 1 3/4" (44mm) standard. 2" and 2 1/4" (51mm and 57mm) optional; specify when ordering. Minimum Stile Width: 4 1/2" (114mm) Projection: 3 1/4" (83mm) active, 2 3/4" (70mm) dogged Latchbolt: Two piece mechanical 3/4" (19mm) deadlocking stainless steel with anti-friction insert and auxiliary deadlocking latch Strike: Curved lip, non-handed 798. Optional 712 for door pairs with astragals. Optional 718 open back strike. Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware. Trims: 620F/650F series escutcheon trim, 630F/660F/670F series pull/thumbpiece trim, 684F offset pull trim. See pages 22-24. ANSI/BHMA: Certified A156.3 Type 3, Grade 1 UL/cUL: FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.) (4' x 9' single, 8' x 9' pairs, 1-1/2 hr.) Dogging: Hex key dogging supplied standard on panic devices
UPC	722208642188

Specifications

Door Opening Width:
- 24 for 24" (60cm) doors
- 36 for 30" - 36" (76cm - 91cm) doors
- 48 for 36" - 48" (91cm - 122cm) doors
Door Thickness: 1 3/4" (44mm) standard. 2" and 2 1/4" (51mm and 57mm) optional; specify when ordering.
Minimum Stile Width: 4 1/2" (114mm)
Projection: 3 1/4" (83mm) active, 2 3/4" (70mm) dogged
Latchbolt: Two piece mechanical 3/4" (19mm) deadlocking stainless steel with anti-friction insert and auxiliary deadlocking latch
Strike: Curved lip, non-handed 798. Optional 712 for door pairs with astragals. Optional 718 open back strike.
Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
Trims: 620F/650F series escutcheon trim, 630F/660F/670F series pull/thumbpiece trim, 684F offset pull trim. See pages 22-24.
ANSI/BHMA: Certified A156.3 Type 3, Grade 1
UL/cUL: FVSR/FVSR7 - Panic hardware; GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.) (4' x 9' single, 8' x 9' pairs, 1-1/2 hr.)
Dogging: Hex key dogging supplied standard on panic devices

UPC

722208642188

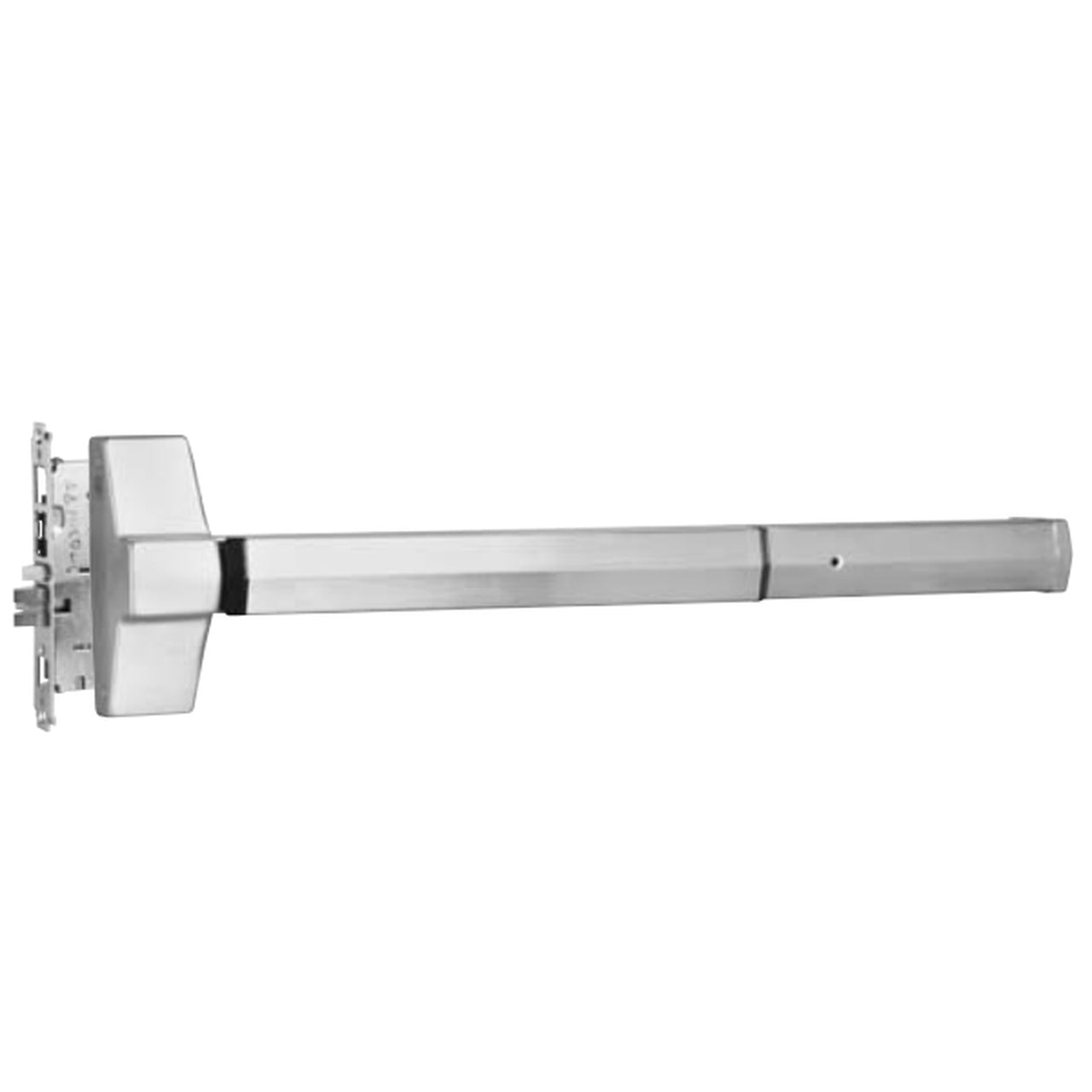

ACCENTRA (Formerly Yale) 7130-K5(F) Grade 1 Mortise Exit Device
