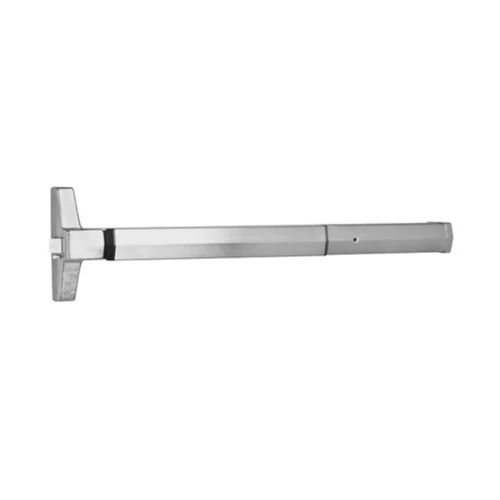

ACCENTRA 7200 Grade 1 Narrow Stile Rim Exit Device

The 7200 is a narrow stile rim exit device compatible with the aesthetics and functional requirements of contemporary doors.

Features:

High quality steel chassis and heavy-duty components
Sleek design and clean lines suit the appearance of many modern commercial buildings
Utilizes EcoFlex®️ control trim technology on all electromechanical functions, creating up to 89% energy savings

Applications:

Compatible Exit Trims: 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim

Specifications	Door Opening Width: 24 for 24" (60cm) doors 36 for 30" - 36" (76cm - 91cm) doors 48 for 36" - 48" (91cm - 122cm) doors Door Thickness: 1 3/4" (standard) Minimum Stile Width: 2" Projection: 3 1/4" active, 2 3/4" dogged Latchbolt: 3/4" deadlocking stainless steel pullman type Strike: 759 (standard) Trims: 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim Fasteners: Machine screws standard for panic hardware ANSI/BHMA Certified: A156.3, Type 4, Grade 1 UL/cUL: FVSR/FVSR7 - Panic hardware Dogging: Hex key dogging supplied standard
UPC	722208643772

Specifications

Door Opening Width:
- 24 for 24" (60cm) doors
- 36 for 30" - 36" (76cm - 91cm) doors
- 48 for 36" - 48" (91cm - 122cm) doors
Door Thickness: 1 3/4" (standard)
Minimum Stile Width: 2"
Projection: 3 1/4" active, 2 3/4" dogged
Latchbolt: 3/4" deadlocking stainless steel pullman type
Strike: 759 (standard)
Trims: 500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim
Fasteners: Machine screws standard for panic hardware
ANSI/BHMA Certified: A156.3, Type 4, Grade 1
UL/cUL: FVSR/FVSR7 - Panic hardware
Dogging: Hex key dogging supplied standard
