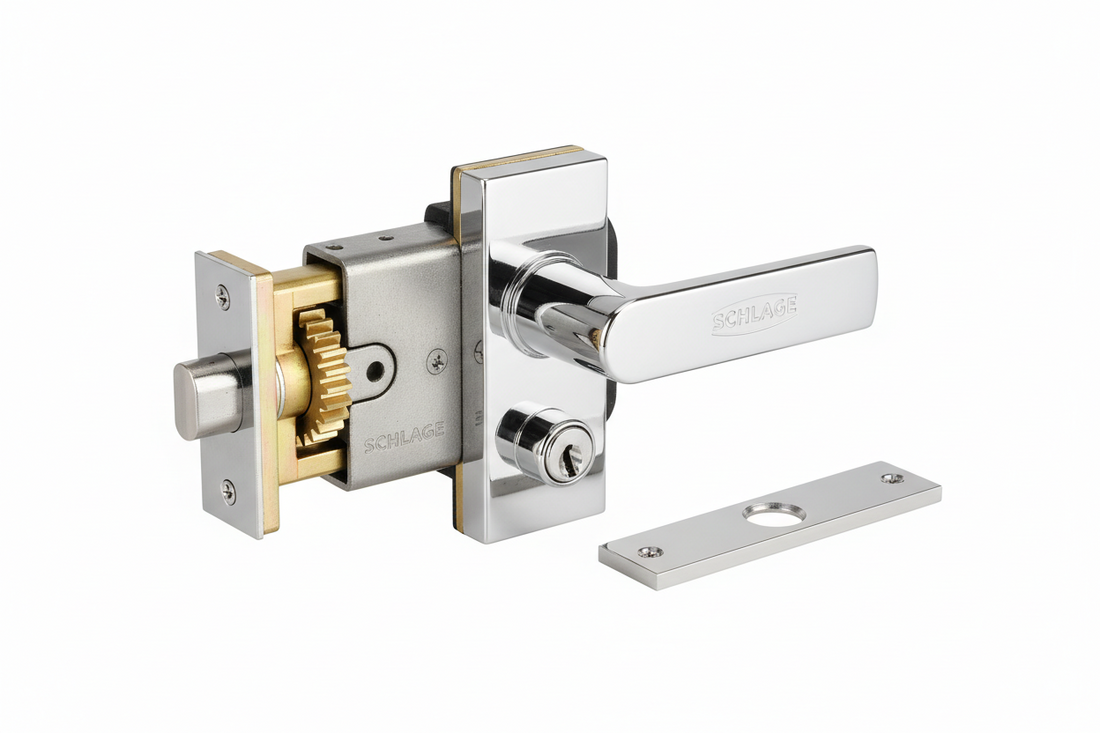

Mortise Lock vs Cylindrical Lock: Commercial Application Guide
The Fundamental Difference
Mortise locks and cylindrical locks are the two dominant lockset types in commercial construction. They differ in internal mechanism complexity, door preparation requirements, security capability, and cost — and choosing the wrong type for an application creates problems that are expensive to correct after the door is hung.
Here is the core distinction:
- Mortise lock: A self-contained lock case that is installed into a rectangular pocket (mortise) cut into the door edge. The case contains the latchbolt, deadbolt, and often the cylinder, all in one unit.
- Cylindrical lock (bored lock): A lock installed through two bored holes in the door face — a large cross-bore for the lock body and a smaller edge bore for the latch. The latch and lock mechanism are separate components assembled through the door.
Internal Construction: What’s Inside Each Lock
Mortise Lock Internals
A mortise lock case is a precision-machined steel box, typically 3.75" to 4" tall, containing:
- A spring latchbolt — automatically engages on door closing
- A deadbolt — key or thumbturn operated, provides primary security
- An anti-friction latchbolt on higher-end models — reduces door closer back pressure
- A deadlocking plunger — prevents latchbolt from being pushed back with a tool when the door is closed
- Electric options: some cases include an electric latch retraction (ELR) coil, electrified deadbolt, or both
The mortise case is secured by a faceplate screwed into the door edge, and trim (lever handles, escutcheons) is mounted separately on both faces of the door. This modular design means the same lock case can accept different trim styles — a significant advantage for architects specifying consistent aesthetics across a project.
Cylindrical Lock Internals
A cylindrical lock consists of:
- An outside rose or escutcheon with lever or knob and cylinder
- An inside rose or escutcheon with lever or thumbturn
- A spindle connecting both sides through the cross-bore
- A chassis or chassis assembly inside the cross-bore that contains the locking mechanism
- A separate latchbolt assembly installed in the edge bore
The mechanism is simpler than a mortise lock — which is both a cost advantage and a limitation. Cylindrical locks cannot accommodate a full deadbolt in the same assembly (they rely on a separate auxiliary deadbolt if one is required), and electrification options are more limited.
Door Preparation Requirements
Door prep is one of the most important practical considerations when selecting between the two types.
Mortise Lock Door Prep
- Requires a mortise pocket cut into the door edge, typically 1" wide × 3.75–4" tall × depth of the lock case (usually 1.25")
- Requires a minimum door thickness of 1-3/4" (1.75") — the standard commercial hollow metal door thickness
- Requires precise vertical and horizontal positioning — typically specified in a Door Hardware Schedule with exact measurements from the door bottom
- Door must be mortise-prepped at the factory or by a machinist — field mortising is possible but less precise and more labor-intensive
- Strike requires a corresponding mortise pocket in the frame (strike box)
Cylindrical Lock Door Prep
- Requires two bored holes: a 2-1/8" cross-bore (ANSI standard) in the door face and a 1" edge bore
- Compatible with doors as thin as 1-3/8" — allowing use on wood doors and light commercial doors
- Can be field-bored with a standard bored lock kit — no specialized machinery required
- Strike is surface-mounted or requires only a shallow strike box in the frame
Key implication: Mortise prep must be specified before the door is fabricated. Retrofitting a mortise lock into a door prepped for a cylindrical lock (or vice versa) typically requires a new door or a door edge repair that is visible and structurally compromising.
ANSI/BHMA Standards
Mortise locks and cylindrical locks are tested to different ANSI/BHMA standards:
| Lock Type | Primary ANSI Standard | Grade 1 Cycles |
|---|---|---|
| Cylindrical (bored) locksets | ANSI/BHMA A156.2 | 250,000 |
| Mortise locksets | ANSI/BHMA A156.13 | 250,000 |
| Mortise lock cases (standalone) | ANSI/BHMA A156.13 Series 1000 | 250,000 |
Both types achieve Grade 1 at 250,000 cycles, but the A156.13 standard for mortise locks includes additional tests for the deadbolt, anti-friction latchbolt, and overall case integrity that have no equivalent in A156.2. In practice, a Grade 1 mortise lock from a major manufacturer is a more mechanically robust product than a Grade 1 cylindrical lock from the same manufacturer — the standard demands more of it.
Security Comparison
Mortise locks offer meaningful security advantages over cylindrical locks for high-security applications:
| Security Factor | Mortise Lock | Cylindrical Lock |
|---|---|---|
| Latchbolt + deadbolt in one case | Yes — standard | No — requires separate deadbolt |
| Deadlocking plunger | Yes — standard on Grade 1 | Yes — standard on Grade 1 |
| Anti-shimming protection | Excellent — case fully recessed | Good — depends on strike |
| Forced entry resistance | High — case distributes force across door edge | Moderate — chassis can be stressed at cross-bore |
| Cylinder security | Interchangeable core (SFIC/LFIC) widely supported | Interchangeable core supported on most Grade 1 |
| Electrification options | Electric latch retraction, electrified deadbolt, motorized | Electric strike only, or electrified trim (limited) |
Electrification: Where Mortise Locks Win
If access control integration is a current or future requirement, mortise locks are the clear choice. Options include:
- Electric Latch Retraction (ELR): A coil inside the mortise case retracts the latchbolt on signal, allowing push/pull egress without lever operation. Used in high-traffic controlled access applications.
- Electrified Deadbolt: The deadbolt is motorized or solenoid-controlled, allowing remote locking/unlocking of the primary security bolt.
- Motorized Mortise Lock: Both latch and deadbolt are electrically operated. Used in high-security applications with full remote control.
- Electrified Trim: The outside lever is electrified — it spins freely (locked) until a valid credential de-energizes a clutch to couple it to the latch mechanism.
Cylindrical lock electrification is typically limited to an electric strike at the frame (which requires a fail safe/fail secure decision) or an electrified outside trim option on select Grade 1 locks. This is adequate for many access-controlled entry doors but offers far less flexibility than mortise electrification.
Cost Comparison
Mortise locks carry a significant cost premium at the unit level:
- Grade 1 cylindrical lockset: Typically $150–$400 depending on function, finish, and brand
- Grade 1 mortise lockset (case + trim): Typically $400–$1,200+ depending on function, electrification, finish, and brand
However, when total cost of ownership is considered — including door prep, installation labor, future electrification, and hardware replacement over the building lifecycle — mortise locks frequently deliver better value on high-use doors. The modular trim system also allows lever style updates without replacing the lock case.
Function Codes: What Lock Functions Are Available
Both types are available in a range of ANSI lock functions. The most common commercial functions:
| ANSI Function | Description | Available In |
|---|---|---|
| F01 — Passage | Always unlatched from both sides | Both |
| F02 — Privacy | Inside button locks outside; emergency release inside | Both |
| F04 — Storeroom | Outside always locked (key only); inside always free | Both |
| F05 — Classroom | Key locks/unlocks outside lever; inside always free | Both |
| F07 — Dormitory/Exit | Key locks/unlocks outside; inside thumbturn; can be set for exit | Mortise primarily |
| F13 — Communicating | Keyed both sides; each side independent | Mortise primarily |
Which to Specify: Application Decision Guide
| Application | Recommended Type | Reason |
|---|---|---|
| Main building entry / lobby | Mortise | Security, electrification, durability |
| Stairwell doors | Either (mortise preferred) | High cycle, code compliance |
| Classroom doors | Cylindrical (or mortise) | Classroom function widely available; cylindrical lower cost |
| Healthcare patient rooms | Mortise | Privacy function, anti-ligature lever options |
| Server room / secured office | Mortise | Deadbolt + latch in one case; electrification options |
| Interior office suite entry | Either | Cylindrical adequate for lower-traffic interior use |
| Retail storefront | Mortise | Deadbolt + latch, electrification, high traffic |
| Storage room / low-traffic interior | Cylindrical | Cost-effective, adequate security |
| Renovation / retrofit (existing cylindrical prep) | Cylindrical | Door re-prep cost usually exceeds upgrade value |
Top Commercial Product Lines
Mortise Locks
- Yale 8800 Series — industry-standard mortise case; widely specified in healthcare, education, and government
- Schlage L Series — modular mortise with extensive trim options; preferred in institutional projects
- Von Duprin/Sargent 7800 Series — heavy-duty mortise for high-security applications
Cylindrical Locks
- Schlage ND Series — the most widely installed Grade 1 cylindrical lockset in North America
- Yale AU/AU700 Series — Grade 1 cylindrical with broad function and finish availability
- Corbin Russwin CL3300 Series — Grade 1 cylindrical with SFIC core option
