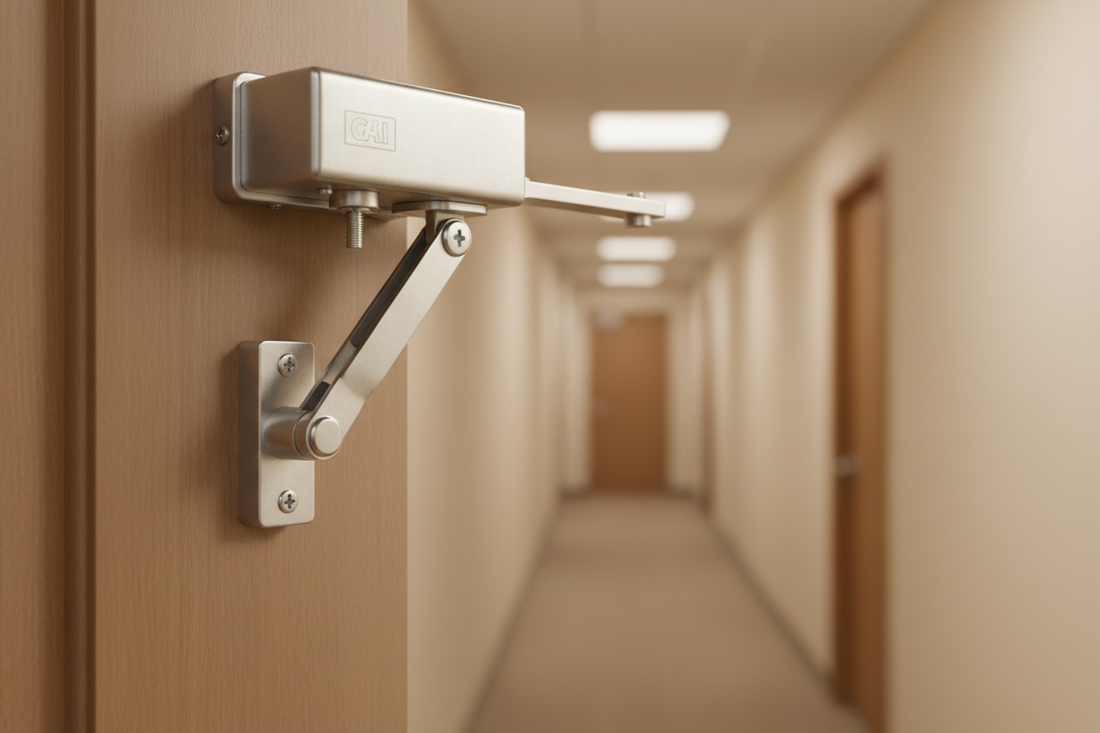

How to Choose the Right Door Closer for Commercial Buildings
A commercial door closer is one of the most hardworking pieces of hardware in any building. It operates silently hundreds of times a day, ensuring doors close completely, latch securely, and comply with fire and accessibility codes. Yet it's one of the most frequently misspecified products in commercial construction and renovation.
Choose the wrong closer and you'll deal with doors that don't latch, slam shut on occupants, or fail fire inspections. Choose the right one and you'll forget it's even there — which is exactly the point.
This guide covers everything contractors, facility managers, and building owners need to know to specify and purchase the right door closer for any commercial application.
What Does a Door Closer Actually Do?
A door closer is a hydraulic mechanical device that controls three things:
- Backcheck — slows the door as it approaches full open, preventing it from slamming into walls or door stops
- Closing speed — controls how fast the door swings from open to nearly closed
- Latching speed — a final burst of speed near the closed position to ensure the latch engages
All three are adjustable on quality commercial closers via external valves — no tools required beyond a small screwdriver. This adjustability is critical for ADA compliance, which limits the opening force required on interior doors to 5 lbs maximum.
Door Closer Grades and Standards
Like locks, door closers are rated to ANSI/BHMA standards under ANSI A156.4:
- Grade 1 — 2,000,000+ cycles. Heavy commercial, institutional, high-traffic.
- Grade 2 — 1,000,000 cycles. Light commercial, low-traffic.
- Grade 3 — 500,000 cycles. Residential only.
For any commercial building — offices, schools, hospitals, apartment common areas — Grade 1 is the standard. A busy corridor door can easily see 500+ cycles per day, meaning a Grade 3 closer would fail in under three years.
Surface Mount vs. Concealed Door Closers
Surface Mounted Closers
Surface mounted closers are the most common type in commercial buildings. The closer body mounts on the face of the door or frame, and the arm is visible. They're easier to install, easier to adjust, and significantly less expensive than concealed options.
Best for: Schools, hospitals, offices, apartment corridors, stairwells — anywhere function matters more than aesthetics.
Top surface mounted closers include the Sargent 351 Series Powerglide®, the LCN 4040XP, and the Norton 1601 — all Grade 1, all adjustable, all UL fire-rated. Browse surface mounted door closers at Park Avenue Locks for a full selection.
Concealed Closers
Concealed closers are mortised into the door or frame, hiding the mechanism entirely. They're preferred in high-end retail, hospitality, and architectural applications where a clean look is required.
Best for: Luxury hotels, upscale retail, executive offices, historic buildings where surface hardware would be obtrusive.
Concealed closers are significantly more expensive and require precise door preparation — they're not a DIY installation.
Understanding Door Closer Arm Types
The arm configuration determines how and where the closer mounts, and affects the door's swing behavior. Choosing the wrong arm type is one of the most common specification mistakes.
Regular Arm (Standard Arm)
The most common configuration. The closer body mounts on the pull side of the door. The arm extends to the frame. This is the default choice for most interior commercial doors.
Parallel Arm
The closer body mounts on the push side of the door, with the arm running parallel to the door face. Used when the closer needs to be on the push side — common for corridor doors where the pull side is exposed to the public.
Compression Stop (CPS)
A parallel arm variant that includes a built-in stop, preventing the door from swinging past a set point. Essential for protecting walls, adjacent doors, and hardware in tight corridors.
Hold Open Arm
Allows the door to be held open at a set position. Useful for loading docks, service corridors, and areas where doors need to stay open during deliveries or cleaning.
Note: Hold open closers are not permitted on fire-rated doors unless connected to a fire alarm system that releases the door automatically. Always verify with your AHJ.
Top Jamb Mounting
When neither the door face nor the frame has adequate space for standard mounting, top jamb mounting places the closer body on the frame above the door. Most quality closers are tri-packed — they include hardware for regular arm, parallel arm, and top jamb mounting in one box.
Sizing Your Door Closer
Door closers are sized 1 through 6, based on door width and weight:
- Size 1–2 — Up to 36". Interior office, light commercial.
- Size 3–4 — 36"–42". Standard commercial interior.
- Size 4–5 — 42"–48". Heavy commercial, exterior doors.
- Size 6 — 48"+. Extra heavy, oversized doors.
Most quality commercial closers — including the Sargent 351 Series and LCN 4040XP — are adjustable across multiple sizes in a single body, typically covering sizes 1–6. This simplifies inventory and allows field adjustment without replacing the unit.
Important: Undersizing a closer is a common mistake. An undersized closer won't generate enough force to reliably close and latch the door, especially on exterior doors fighting wind pressure. When in doubt, size up.
Door Closers and ADA Compliance
The Americans with Disabilities Act requires that interior doors in accessible routes have a maximum opening force of 5 lbs. Key ADA considerations:
- Sweep speed must be slow enough that a person using a wheelchair or mobility aid can pass through safely — minimum 5 seconds from 90° to 12° before latch
- Latching speed must allow the door to close completely without slamming
- Backcheck should be set to prevent the door from rebounding
All Grade 1 commercial closers have the adjustability needed to meet ADA requirements. The key is proper field adjustment after installation.
Fire Door Requirements
If a door is in a fire-rated assembly, the closer is not optional — it's required by code. Fire doors must be self-closing and self-latching at all times. Key requirements:
- Closer must be UL listed for the fire rating of the door (20-minute, 45-minute, 90-minute, or 3-hour)
- Hold open closers are only permitted on fire doors if connected to a fire alarm system with automatic release
- The closer must generate enough force to close and latch the door — typically requiring a size 3 or higher
The Sargent 351 Series, LCN 4040XP, and Norton 1601 are all UL/cUL fire-rated up to 3 hours and are among the most widely specified closers for fire door applications.
Top Commercial Door Closer Brands
Sargent — The 351 Powerglide® Series is one of the most specified closers in North America. Heavy-duty die cast aluminum body, adjustable sizes 1–6, full complement of arm types, UL fire-rated. Excellent for schools, healthcare, and institutional applications.
LCN — The 4040XP is the heavy-duty workhorse of the industry. Cast iron body, forged steel arm, 44% increased bearing load capacity. The go-to choice for high-abuse environments.
Norton — The 1601 Series offers reliable Grade 1 performance at a competitive price point. Tri-mount capable, adjustable sizes 1–6, UL fire-rated. A solid choice for standard commercial applications.
Browse all door closers at Park Avenue Locks — we carry the full lines from Sargent, LCN, Norton, and more.
Buying Tips for Contractors and Facility Managers
- Match the arm type to the door swing and mounting surface. Measure before you order — the wrong arm type means a return.
- Check fire rating requirements first. If the door is fire-rated, the closer must be UL listed for that rating.
- Don't undersize. When in doubt between two sizes, go with the larger.
- Buy tri-packed when possible. Gives your installers flexibility in the field.
- Standardize across the project. One closer model throughout a building simplifies installation and future maintenance.
Conclusion: Specify the Right Commercial Door Closer the First Time
A commercial door closer is a small investment with a big impact on building safety, accessibility, and code compliance. By understanding grades, arm types, sizing, and fire door requirements, you can specify the right closer for every opening — and avoid the costly callbacks that come from getting it wrong.
