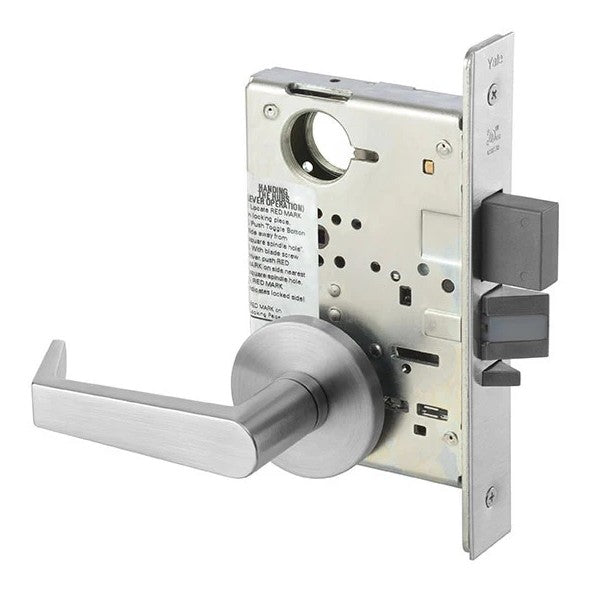

Overview: What Is the Yale 8835FL?

The Yale 8835FL is a heavy-duty exit mortise lever lock designed for commercial door applications requiring both panic egress and mortise lock security. It combines a mortise lock body with a lever trim on both sides, making it one of the most versatile and widely specified exit mortise devices in the commercial hardware market.

The "FL" designation refers to the lever trim configuration — lever both sides — distinguishing it from other Yale 8800 Series configurations that use different trim combinations. The 8835FL is part of Yale's 8800 Series, which is engineered for high-traffic institutional, commercial, and educational applications.

Key Specifications

• Series: Yale 8800
• Type: Exit Mortise Lock with Lever Trim
• Standard: ANSI/BHMA A156.3, Grade 1
• Fire Rating: Listed for use on 3-hour fire-rated door assemblies (UL 10C positive pressure)
• Backset: 2-3/4" standard (3-3/4" available)
• Door Thickness: 1-3/4" standard (1-3/8" to 2-1/4" with optional spacers)
• Handing: Field-reversible
• Chassis: Heavy-duty steel
• Latchbolt: 3/4" throw stainless steel
• Deadbolt: 1" throw hardened steel (on applicable functions)

Available Functions

The Yale 8835FL is available in multiple ANSI functions to suit different access control requirements. The most commonly specified functions include:

Function F01 — Passage

Both levers always free. No locking. Used for interior doors where free passage is always required.

Function F04 — Storeroom

Outside lever always fixed (locked). Inside lever always free for egress. Entry requires a key at all times. Common for storage rooms, server rooms, and utility spaces.

Function F05 — Office

Outside lever is normally locked; key or inside thumbturn unlocks it. Inside lever always free. The most common function for office doors.

Function F08 — Classroom

Outside lever locked or unlocked by key from outside only. Inside lever always free. Designed for classroom security — the teacher can lock the door from outside without entering. Critical for school lockdown compliance.

Function F13 — Corridor

Outside lever free or locked by key or thumbturn. Inside lever always free. Used in corridors and common areas where the door needs to be secured after hours.

Function F14 — Dormitory/Exit

Outside lever free or locked by key. Inside lever always free. Deadbolt thrown or retracted by inside thumbturn. Common in dormitories, apartments, and multi-family residential.

Lever Trim Options

The 8835FL is available with a wide range of lever styles to match your project's aesthetic and ADA requirements. All standard levers are ADA-compliant. Popular options include:

• Lever 10 — Classic curved lever, the most widely specified
• Lever 12 — Straight lever, modern aesthetic
• Lever 14 — Offset lever, ergonomic design
• Lever 17 — Hospital-style lever, operable with forearm or elbow, required in many healthcare applications
• Lever 36 — Contemporary design, popular in modern commercial interiors

Custom lever options are available for projects with specific design requirements. Contact Park Avenue Locks for custom trim availability.

Finish Options

The Yale 8835FL is available in standard ANSI/BHMA finishes:

• US26D (626) — Satin Chrome — most popular for commercial applications
• US10B (613) — Oil-Rubbed Bronze — popular for hospitality and upscale commercial
• US3 (605) — Bright Brass — traditional institutional look
• US4 (606) — Satin Brass — warm tone, institutional applications
• US32D (630) — Satin Stainless Steel — best for exterior or high-moisture environments
• US28 (628) — Satin Aluminum — common in aluminum-framed door applications

Fire Rating and Code Compliance

The Yale 8835FL is UL-listed for use on fire-rated door assemblies up to 3 hours (UL 10C positive pressure). This makes it suitable for the most demanding fire-rated openings in commercial construction, including stairwell doors, corridor doors, and other fire-barrier openings.

The device also meets:

• ANSI/BHMA A156.3 Grade 1 — the highest grade for exit devices
• ADA Standards for Accessible Design — all standard lever trims comply
• NFPA 101 Life Safety Code requirements for panic egress
• IBC (International Building Code) requirements for exit hardware

How to Order the Yale 8835FL

Yale exit mortise locks are ordered using a structured product code. A typical 8835FL order string looks like this:

Example: Yale 8835FL x F05 x 10 x 626 x RHR

• 8835FL — Base model (exit mortise, lever both sides)
• F05 — Function (Office)
• 10 — Lever style
• 626 — Finish (Satin Chrome)
• RHR — Handing (Right Hand Reverse)

Handing is determined by standing on the outside (key side) of the door and observing which side the hinges are on. Right Hand (RH) = hinges on right. Left Hand (LH) = hinges on left. Reverse handing applies when the door swings toward you.

Installation Notes

• The 8835FL requires a standard ANSI mortise prep (ANSI A115.1) in the door edge.
• Verify the door thickness before ordering — standard is 1-3/4". Spacer kits are available for non-standard thicknesses.
• The device is field-reversible for handing, but it is best practice to order the correct hand to avoid field modification.
• Cylinder is not included — order separately. The 8835FL accepts standard Yale or SFIC (Small Format Interchangeable Core) cylinders.
• Strike plate must be ordered separately and matched to the door frame material and profile.

Cylinder Options

The Yale 8835FL accepts the following cylinder formats:

• Yale Standard Cylinder — 6-pin, keyway options available
• SFIC (Small Format Interchangeable Core) — compatible with Best, Arrow, and other SFIC systems for master key flexibility
• Schlage C Keyway — available for projects on Schlage master key systems

Frequently Asked Questions

Is the Yale 8835FL the same as the 8800FL?

No. The 8800 Series is the product family. The 8835FL is a specific model within that family. Other models in the series include the 8827FL (exit mortise with thumbturn inside) and the 8847FL (exit mortise with deadbolt). Always specify the exact model number.

Can the 8835FL be used on a fire-rated door?

Yes. The 8835FL is UL-listed as fire exit hardware for assemblies up to 3 hours. It is one of the few exit mortise devices rated for 3-hour assemblies.

Does the 8835FL include a cylinder?

No. The cylinder must be ordered separately. Specify the keyway and cylinder format when ordering.

What is the warranty on the Yale 8835FL?

Yale provides a limited lifetime mechanical warranty on the 8835FL for commercial applications.
